02 - Backguard
03 - Cooktop Parts
04 - Door Parts
05 - Broiler Parts
06 - Body Parts
07 - Drawer Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

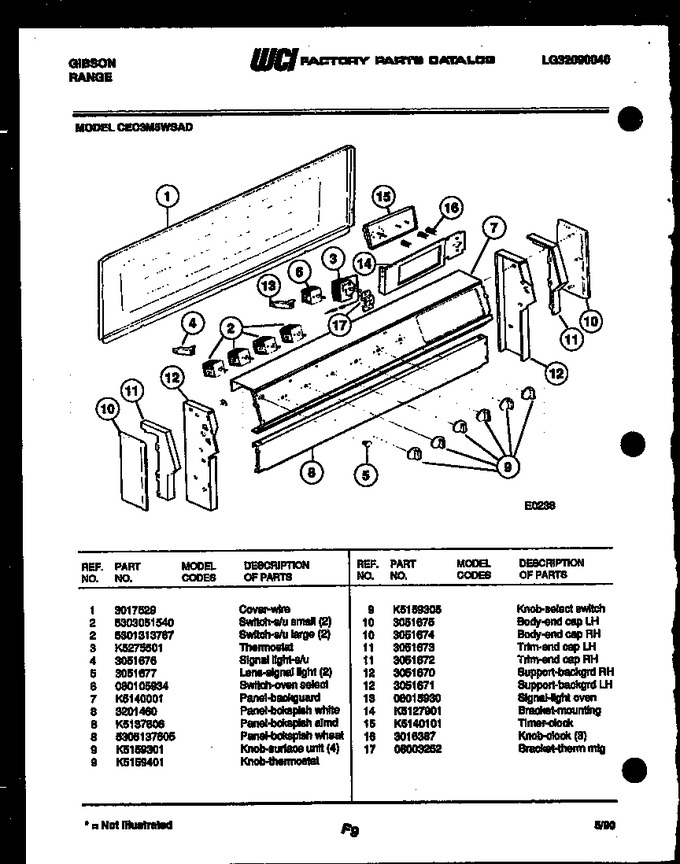

| 1 | 3017529 | Cover-wire |
|
- | |||||
| 2 | 5303051540 | Switch-s/u Small (2) |
|
- | |||||
| 2 | 5301313767 | Switch-s/u Large (2) |
|
- | |||||
| 3 | K5275501 | Thermostat |
|
- | |||||
| 4 | 3051676 | Signal Light - S/u |
|
- | |||||
| 5 | 3051677 | Lens - Signal Light (2) |
|
- | |||||
| 6 | 080105934 | Switch-oven Select |
|
- | |||||
| 7 | K5140001 | Panel - Backguard |
|
- | |||||
| 8 | 3201460 | Panel-bcksplsh White |
|
- | |||||
| 8 | K5137606 | Panel-bcksplsh Almd |
|
- | |||||
| 8 | 5305137605 | Panel-bcksplsh Wheat |
|
- | |||||
| 9 | K5159401 | Knob - Thermostat |
|
- | |||||
| 9 | K5159305 | Knob - Select Switch |
|
- | |||||
| 9 | K5159301 | Knob-surface Unit (4) |
|
- | |||||
| 10 | 3051675 | Body-end Cap-l.h. |
|
- | |||||
| 10 | 3051674 | Body-end Cap-r.h. |
|
- | |||||
| 11 | 3051673 | Trim-end Cap-l.h. |
|
- | |||||
| 11 | 3051672 | Trim-end Cap-r.h. |
|
- | |||||
| 12 | 3051671 | Support-backgrd Lh |
|
- | |||||
| 12 | 3051670 | Support-backgrd Rh |
|
- | |||||
| 13 | 08015930 | Signal Light-oven |
|
- | |||||
| 14 | K5127901 | Bracket Mounting |
|
- | |||||
| 15 | K5140101 | Timer-clock |
|
- | |||||
| 16 | 3016387 | Knob-clock (3) |
|
- | |||||
| 17 | 08003252 | Bracket - Thermostat |
|
- |
