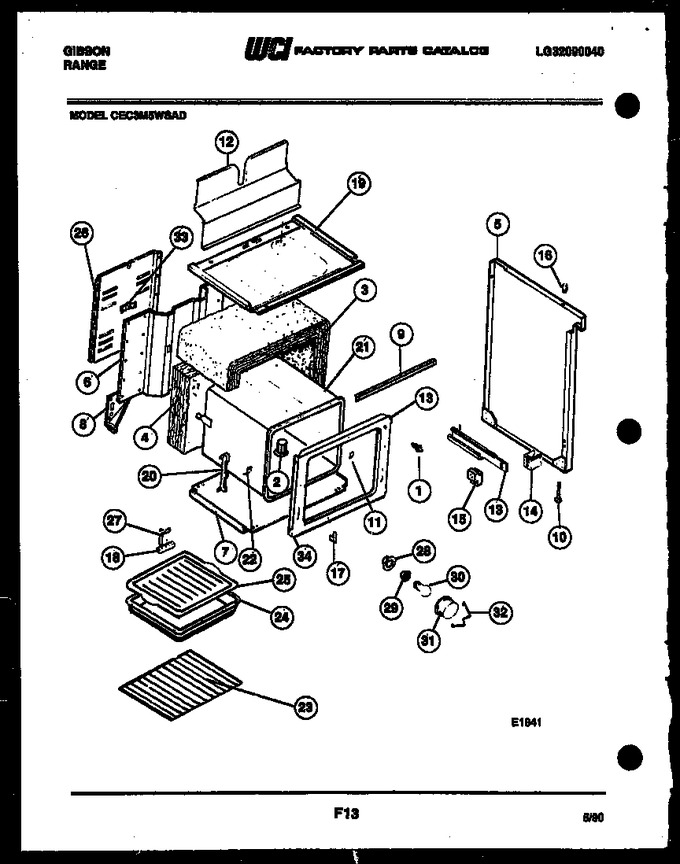

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5301314211 | Switch-oven Light |
|
$ 95.29 | |||||
| 2 | 08012541 | Tube-oven Vent |
|
- | |||||
| 3 | 3051521 | Insulation - Oven Wrap |
|
- | |||||
| 4 | 5303051630 | Insulation, Oven Back |
|
- | |||||
| 5 | 08012536 | Side Panel Lh-wheat |
|
- | |||||
| 5 | 08012535 | Pnl-side Rh Wheat |
|
- | |||||
| 5 | 5308012530 | Pnl - Side Lh (almd) |
|
- | |||||
| 5 | 5308012529 | Pnl-side Rh Almd |
|
- | |||||
| 5 | 5308012528 | Pnl-side Lh White |
|
- | |||||
| 5 | 5308012527 | Pnl-side Rh White |
|
- | |||||
| 6 | 3205757 | Back |
|
- | |||||
| 7 | 3206275 | Panel, Bottom |
|
- | |||||
| 8 | 3017481 | Gusset-rear, Rh |
|
- | |||||
| 8 | 3017482 | Gusset-rear, Lh |
|
- | |||||
| 9 | 5303207391 | Support-subtop |
|
- | |||||
| 10 | 3205294 | Screw - Leveling (4) |
|
- | |||||
| 11 | 3202082 | Cover Seam |
|
- | |||||
| 12 | 3206095 | Shield-wire |
|
- | |||||
| 13 | 5308015746 | Rail-drawer Rh |
|
- | |||||
| 13 | 3051652 | Rail, Drawer Lh |
|
- | |||||
| 14 | 3051653 | Spacer, Drwr Rail (2) |
|
- | |||||
| 15 | 3051654 | Guide - Drwr Front (2) |
|
- | |||||
| 16 | 5308003107 | Bumper, Cooktop (4) |
|
- | |||||
| 17 | 3019063 | Retainer - Door (2) |
|
- | |||||
| 18 | 5303051098 | Block - Terminal |
|
- | |||||
| 19 | 08012542 | Panel - Subtop |
|
- | |||||
| 21 | 3206079 | Liner - Oven |
|
- | |||||
| 22 | 3201632 | Spacer, Oven (2) |
|
- | |||||
| 23 | 5303131973 | Rack, Oven (2) |
|
- | |||||
| 24 | 3205539 | Pan, Broiler |
|
- | |||||
| 25 | 3205234 | Grille, Broiler |
|
- | |||||
| 26 | 5303051856 | Cover, Wire |
|
- | |||||
| 27 | 5301145190 | Strap, Ground |
|
- | |||||
| 28 | 3051511 | Cup, Oven Light |
|
$ 60.22 | |||||
| 29 | 316116400 | Receptacle - Bulb (Replaces: 5308011085) |
|
Immediately | $ 56.10 | ||||
| 30 | 40A15 | Bulb (Replaces: 5303013071) |
|
Immediately | $ 1.98 | ||||
| 31 | 5304524341 | Glass - Oven Light Lens (Replaces: 08011086) |
|
Immediately | $ 14.18 | ||||
| 32 | 5303205904 | Retainer |
|
$ 7.67 | |||||
| 33 | 3016281 | Spring, Oven (2) |
|
- | |||||
| 34 | 5303207446 | Front - Oven |
|
- | |||||
| *32635 | 3934063 | Anti-tip Kit |
|
- | |||||
| *32636 | 5300009126 | Clip |
|
- |
