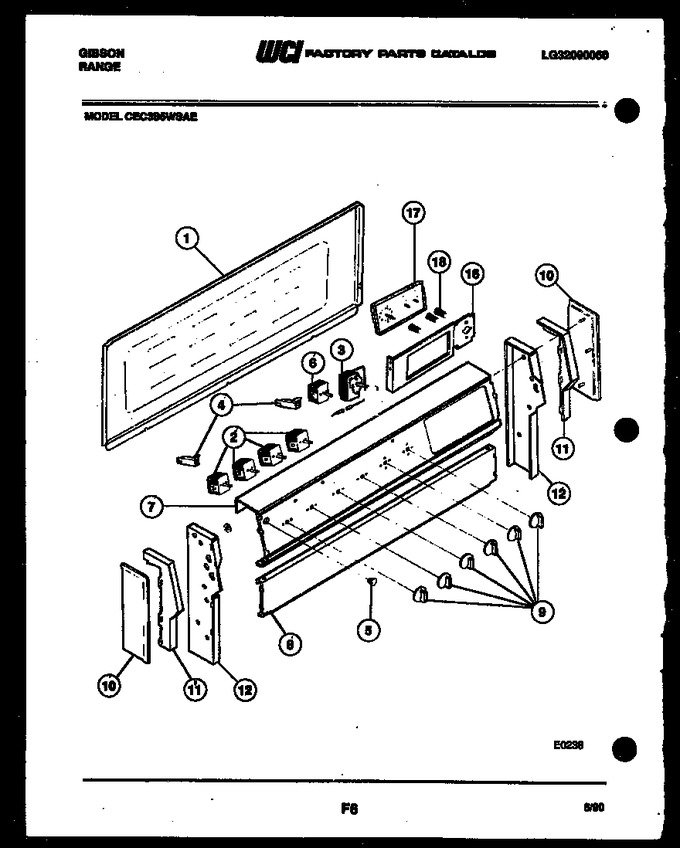

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3017529 | Cover-wire |
|
- | |||||
| 2 | 5303051540 | Switch, Surface Unit, Small (2) |
|
- | |||||
| 2 | 5301313767 | Switch, Surface Unit, Large (2) |
|
- | |||||
| 3 | 5308014203 | Thermostat |
|
- | |||||
| 4 | 3051679 | Signal Light-oven |
|
- | |||||
| 4 | 3051676 | Signal Light-surface Unit And Clean (2) |
|
- | |||||
| 5 | 3051677 | Lens - Signal Light (3) |
|
- | |||||
| 6 | 5308015771 | Switch-oven Selector |
|
- | |||||
| 7 | K005141501 | Panel-backguard |
|
- | |||||
| 8 | 3201460 | Panel-bcksplsh White |
|
- | |||||
| 8 | K5137604 | Panel-bcksplsh Avoc |
|
- | |||||
| 8 | K5137606 | Panel-bcksplsh Almd |
|
- | |||||
| 8 | K5137603 | Panel-bcksplsh Coffee |
|
- | |||||
| 8 | 5305137605 | Panel-bcksplsh Wheat |
|
- | |||||
| 9 | K5159303 | Knob - Selector Switch |
|
- | |||||
| 9 | K5159402 | Knob - Thermostat |
|
- | |||||
| 9 | K5159301 | Knob-surface Unit (4) |
|
- | |||||
| 10 | 3051675 | Body-end Cap-l.h. |
|
- | |||||
| 10 | 3051674 | Body-end Cap-r.h. |
|
- | |||||
| 11 | 3051672 | Trim-end Cap-r.h. |
|
- | |||||
| 11 | 3051673 | Trim-end Cap-l.h. |
|
- | |||||
| 12 | 3051670 | Support-backgrd Rh |
|
- | |||||
| 12 | 3051671 | Support-backgrd Lh |
|
- | |||||
| 16 | K5127901 | Bracket Mounting |
|
- | |||||
| 17 | K5141601 | Timer-clock |
|
- | |||||
| 18 | K5159301 | Knob-clock (3) |
|
- |
