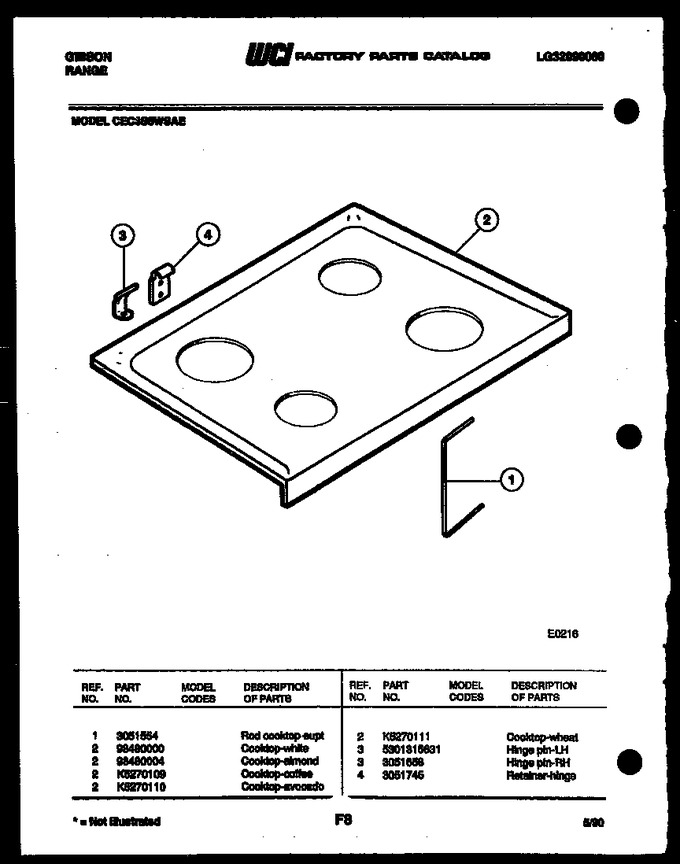

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3051554 | Rod-cooktop Supt. |
|
- | |||||
| 2 | K5270111 | Cooktop, Wheat |
|
- | |||||
| 2 | K5270110 | Cooktop, Avocado |
|
- | |||||
| 2 | K5270109 | Cooktop, Coffee |
|
- | |||||
| 2 | 98480004 | Cooktop-almond |
|
- | |||||
| 2 | 98480000 | Cooktop - White |
|
- | |||||
| 3 | 3051658 | Hinge-pin Rh |
|
- | |||||
| 3 | 5301315631 | Hinge-pin Lh |
|
- | |||||
| 4 | 3051745 | Retainer-hinge |
|
- |
