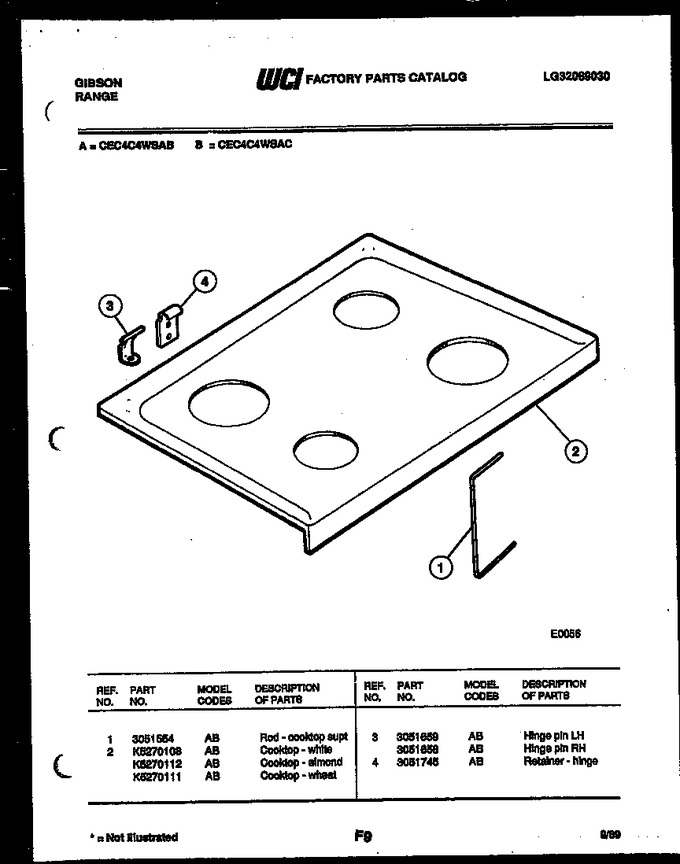

04 - Cooktop Parts
05 - Broiler Parts
06 - Drawer Parts
07 - Body Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3051554 | Rod-cooktop Supt. |
|
- | |||||
| 2 | K5270111 | Cooktop, Wheat |
|
- | |||||
| 2 | K5270112 | Cooktop, Almond |
|
- | |||||
| 2 | K5270108 | Cooktop, White |
|
- | |||||
| 3 | 3051659 | Hinge Pin - Lh |
|
- | |||||
| 4 | 3051745 | Retainer-hinge |
|
- | |||||
| 3A | 3051658 | Hinge-pin Rh |
|
- |
