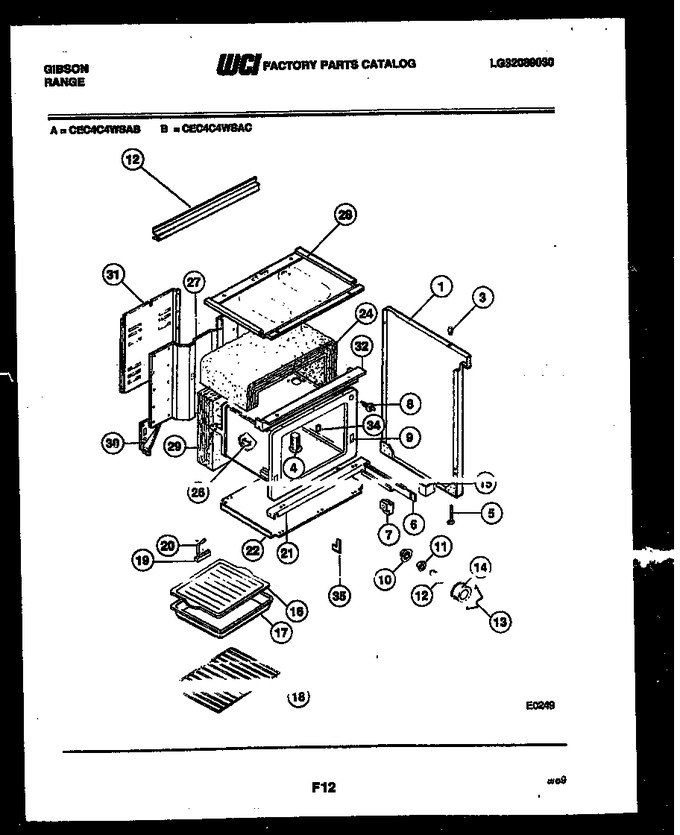

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3051719 | Panel-side Rh Almd |
|
- | |||||
| 1 | 3051484 | Panel-side Lh Almd |
|
- | |||||
| 1 | 08012527 | Panel-side Rh White |
|
- | |||||
| 1 | K5024610 | Panel-side Lh Wheat |
|
- | |||||
| 1 | 08012535 | Panel-side Rh Wheat |
|
- | |||||
| 1 | 08012528 | Panel-side Lh White |
|
- | |||||
| 3 | 3051660 | Bumper-cooktop (4) |
|
- | |||||
| 4 | 08012541 | Vent-tube |
|
- | |||||
| 5 | 3205294 | Leg, Leveller (4) |
|
- | |||||
| 6 | 08015746 | Rail - Drawer Rh |
|
- | |||||
| 7 | 3051654 | Guide, Drawer Fr (2) |
|
- | |||||
| 8 | 3051531 | Switch-oven Light |
|
- | |||||
| 9 | 3205759 | Oven Liner |
|
- | |||||
| 10 | 3051511 | Cup, Oven Light |
|
$ 60.22 | |||||
| 11 | 3051512 | Receptacle-light |
|
- | |||||
| 12 | 3013071 | Light Bulb |
|
- | |||||
| 13 | 3051515 | Retainer, Lens |
|
- | |||||
| 14 | 5304524341 | Glass - Oven Light Lens (Replaces: 08011086) |
|
Immediately | $ 15.61 | ||||
| 15 | 3051653 | Spacer, Drawer Rail (2) |
|
- | |||||
| 16 | 3205234 | Grille, Broiler |
|
- | |||||
| 17 | 3205232 | Pan, Broiler |
|
- | |||||
| 18 | 3131973 | Rack-oven Regular (2) |
|
- | |||||
| 19 | 3051098 | Terminal-block |
|
- | |||||
| 20 | 3051696 | Strap-ground |
|
- | |||||
| 21 | 3200927 | Channel - Oven Support Lower |
|
- | |||||
| 22 | 3203574 | Panel - Bottom |
|
- | |||||
| 24 | 3051521 | Insul - Oven Wrap |
|
- | |||||
| 27 | 3205757 | Back, Range |
|
- | |||||
| 28 | 08012542 | Panel - Subtop |
|
- | |||||
| 29 | 3051522 | Insul.-oven Back |
|
- | |||||
| 30 | 3017481 | Gusset-rear, Rh |
|
- | |||||
| 31 | 3051856 | Wire Cover |
|
- | |||||
| 32 | 3200926 | Channel-oven Supt |
|
- | |||||
| 33 | 3205755 | Shield-wire |
|
- | |||||
| 34 | 3202082 | Cover Seam |
|
- | |||||
| 35 | 3019063 | Retainer - Door (2) |
|
- | |||||
| *21227 | 3016281 | Spring - Ov Mtg (2) |
|
- | |||||
| *21227 | 3203574 | Plate-conduit Mtg |
|
- | |||||
| *21228 | 3934063 | Anti-tip Kit |
|
- | |||||
| 30A | 3017482 | Gusset-rear Rh |
|
- | |||||
| 6A | 3051652 | Rail, Drawer Lh |
|
- |
