SELECT A DIAGRAM

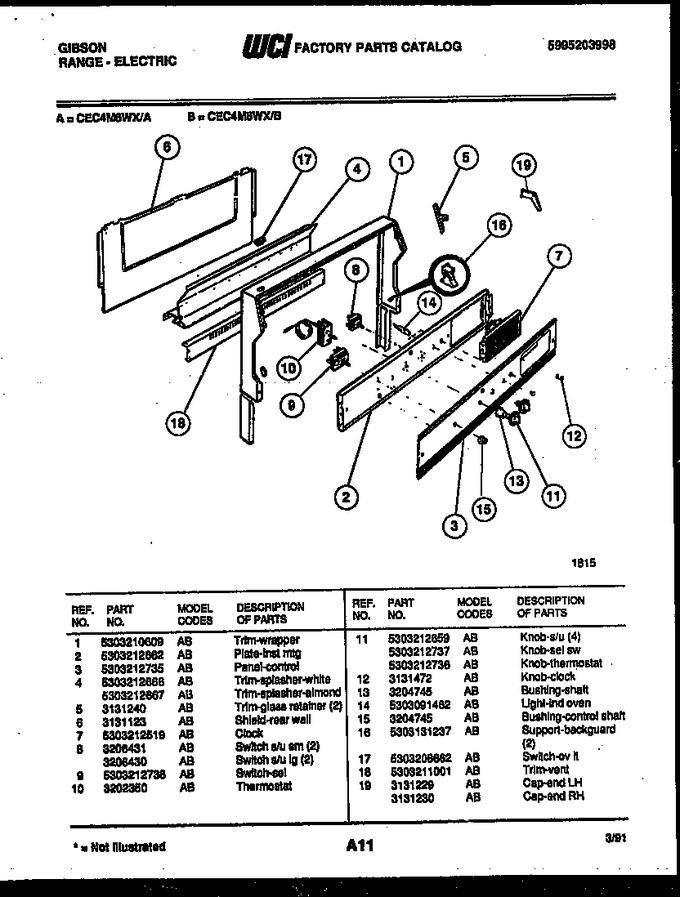

02 - Backguard


03 - Door Parts


04 - Cooktop Parts


05 - Broiler Parts


06 - Body Parts


07 - Drawer Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303210609		Trim, Wrapper		Appelez-nous	-
2	5303212662		Plate - Inst Mtg		Appelez-nous	-
3	5303212735		Panel-control		Appelez-nous	-
4	5303212666		Trim-splasher-white		Appelez-nous	-
4	5303212667		Trim-splasher-almond		Appelez-nous	-
5	3131240		Trim-glass Retainer, (2)		Appelez-nous	-
6	3131123		Shield, Rear Wall		Appelez-nous	-
7	5303212519		Clock		Appelez-nous	-
8	3206431		Switch S/u Sm. (2)		Appelez-nous	-
9	5303212738		Switch-sel		Appelez-nous	-
10	3202350		Thermostat		Appelez-nous	-
11	5303212659		Knob-s/u (4)		Appelez-nous	-
12	3131472		Knob-clock		Appelez-nous	-
13	3204745		Bushing-shaft		Appelez-nous	-
14	5303091462		Light-ind Oven		Appelez-nous	-
15	3204745		Bushing, Control Shaft		Appelez-nous	-
16	5303131237		Support-backguard,(2)		Appelez-nous	-
17	5303208662		Switch-ov It		Appelez-nous	-
18	5303211001		Trim-vent		Appelez-nous	-
19	3131229		Cap, End (lh)		Appelez-nous	-
11A	5303212737		Knob-sel Sw		Appelez-nous	-
11B	5303212736		Knob-thermostat		Appelez-nous	-
19A	3131230		Cap, End (rh)		Appelez-nous	-
8A	3206430		Switch - S/u Lg. (2)		Appelez-nous	-
