SELECT A DIAGRAM
02 - Backguard
03 - Door Parts
04 - Cooktop Parts
05 - Broiler Parts
06 - Body Parts
07 - Drawer Parts
SELECT A DIAGRAM
New Model Search:

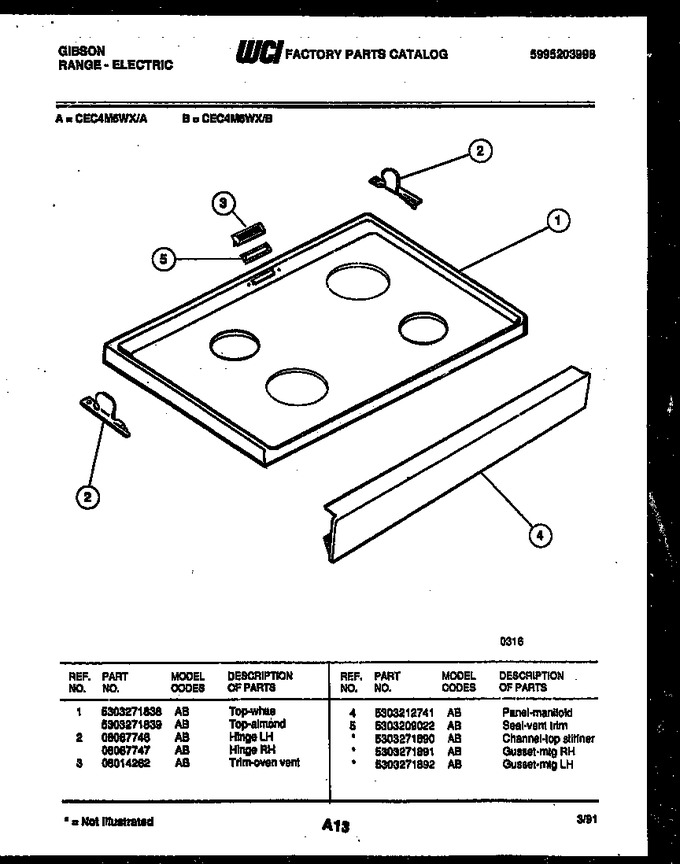

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303271839 | Top-almond |
|
- | |||||
| 1 | 5303271838 | Top-white |
|
- | |||||
| 2 | 08067746 | Hinge Lh |
|
- | |||||
| 3 | 08014262 | Trim, Oven Vent |
|
- | |||||
| 4 | 5303212741 | Panel-manifold |
|
- | |||||
| 5 | 5303209022 | Seal-vent Trim |
|
- | |||||
| *45878 | 5303271892 | Gusset-mtg Lh |
|
- | |||||
| *45878 | 5303271891 | Gusset-mtg Rh |
|
- | |||||
| *45878 | 5303271890 | Channel-top Stiffner |
|
- | |||||
| 2A | 08067747 | Hinge Rh |
|
- |
