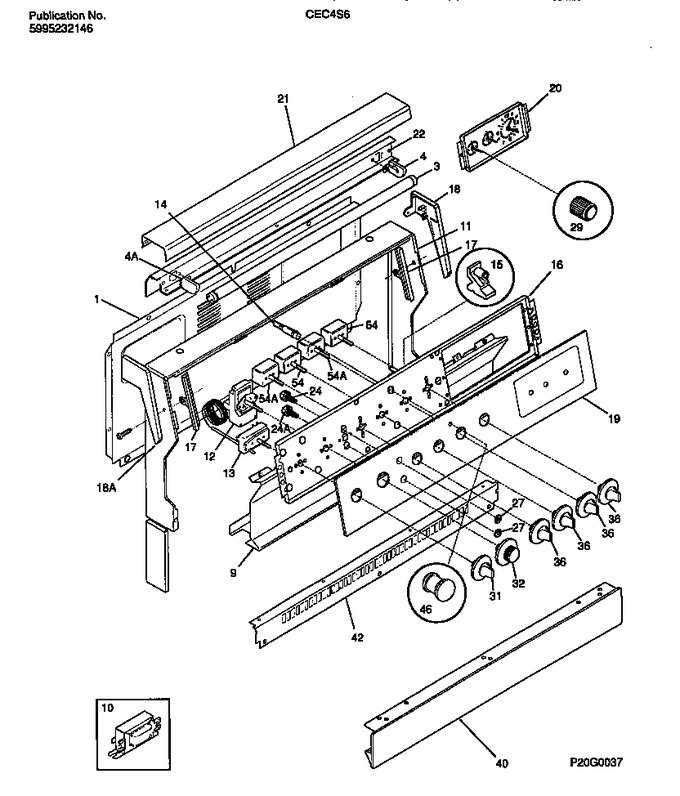

01 - Range, Electric
02 - Backguard
03 - Body
04 - Top/drawer
05 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316028703 | Shield-backguard, Rear Wall |
|
- | |||||
| 3 | 3131275 | Lamp-fluorescent, Backguard |
|
$ 49.40 | |||||
| 4 | 3051222 | Receptacle-lamp, Rh |
|
- | |||||
| 9 | 5303292976 | Trim-splasher, Almond |
|
- | |||||
| 10 | 5303051115 | Ballast-lamp |
|
- | |||||
| 11 | 5303292932 | Trim-wrapper, Black |
|
- | |||||
| 12 | 3204581 | Thermostat-oven |
|
- | |||||
| 13 | 5303212663 | Switch-selector |
|
- | |||||
| 14 | 5308037896 | Indicator Light |
|
$ 39.75 | |||||
| 15 | 5303131237 | Support-backguard,(2) |
|
- | |||||
| 16 | 5303212662 | Plate, Instrument Mtg |
|
- | |||||
| 17 | 3131240 | Trim-glass Retainer, (2) |
|
- | |||||
| 18 | 3131268 | End Cap, Rh |
|
- | |||||
| 19 | 5303212657 | Panel-control, Glass |
|
- | |||||
| 20 | 5303212520 | Clock/timer, Analog 3 Stem |
|
- | |||||
| 21 | 3131282 | Trim-canopy/shield |
|
- | |||||
| 22 | 3131277 | Support-receptacle |
|
- | |||||
| 24 | 5303200480 | Switch-work Light, Puch Button, White |
|
$ 125.53 | |||||
| 27 | 5303011507 | Bezel-switch |
|
$ 21.47 | |||||
| 29 | 3131472 | Knob-clock |
|
- | |||||
| 31 | 5303212661 | Knob-selector, (5) Pos |
|
- | |||||
| 32 | 5303212660 | Knob-thermostat |
|
- | |||||
| 36 | 5303212659 | Knob-control, Infinite Sw |
|
- | |||||
| 40 | 5303212672 | Panel-manifold |
|
- | |||||
| 42 | 5303211001 | Trim-vent |
|
- | |||||
| 54 | 5303935086 | Switch-6`` Element (Replaces: 5303285142) |
|
Immediately | $ 51.95 | ||||
| *57120 | 5303281584 | Screw, Truss Head, 8-18 X 1/2 |
|
- | |||||
| 12A | 3204745 | Bushing-ctrl Shaft |
|
- | |||||
| 14A | 3201726 | Light/lamp, Indicator, Blue, 250 V (non-illustrated) |
|
- | |||||
| 14B | 3201727 | Light/lamp, Indicator, 250v, Oven (non-illustrated) |
|
- | |||||
| 14C | 3201728 | Light/lamp, Indicator, Red, Lock, 125, Lock, (non-illustrated) |
|
- | |||||
| 18A | 3131267 | End Cap, Lh |
|
- | |||||
| 24A | 5303200479 | Switch-oven Light, Push Button |
|
$ 7.04 | |||||
| 4A | 3051223 | Receptacle-lamp, Lh |
|
- | |||||
| 54A | 5303285143 | Switch, 8`` Element |
|
- |
