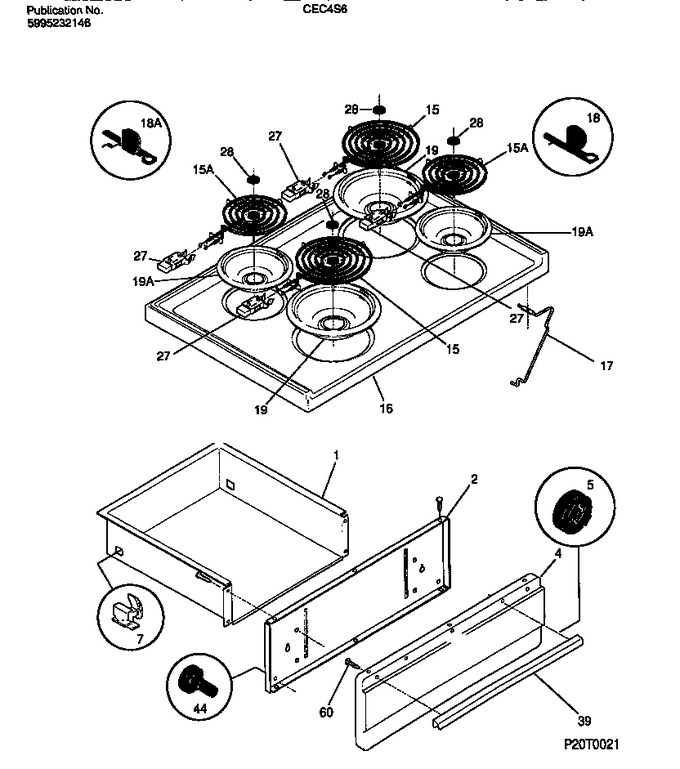

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316011501		Drawer-utility		Appelez-nous	-
2	3131975		Shield-panel		Appelez-nous	-
4	3131134		Panel-drawer-almond		Appelez-nous	-
5	3131387		Fastener-spacer, Push-in Nut, Nylon		Appelez-nous	-
7	3051163		Glide,drawer ,rear			Immediately	$ 19.41
15	5308011964		Element-surface, Large/8 Inch				$ 209.08
16	3013512		Main Top-almond		Appelez-nous	-
17	5303271609		Rod-maintop Support		Appelez-nous	-
18	08067747		Bracket-hinge,main Top Rh		Appelez-nous	-
19	316048413		Pan-surface Element, Large/8 Inch   (Replaces: 5303013588)			Immediately	$ 9.85
27	5303935058		Terminal Block Kit,surface Element   (Replaces: 5303912666)			Immediately	$ 13.81
28	5303017715		Medallion,1 1/2``dia ,black ,surface Element				$ 64.46
39	5303280334		Handle-drawer/door, Brushed Chrome		Appelez-nous	-
44	3131903		Bumper				$ 55.36
60	5303281651		Screw-drawer Handle, 8 Truss Head, 10-16 X 1/2		Appelez-nous	-
*57124	5303281584		Screw, Truss Head, 8-18 X 1/2		Appelez-nous	-
15A	5303015210		Element-surface, Small/6 Inch		Appelez-nous	-
18A	08067746		Bracket-hinge,main Top Lh		Appelez-nous	-
19A	5303205285		Pan-surface Element, Small/6 Inch		Appelez-nous	-
4A	08067785		Screw, Hex Washer Head, 8-18(ab) X 1/2 (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
