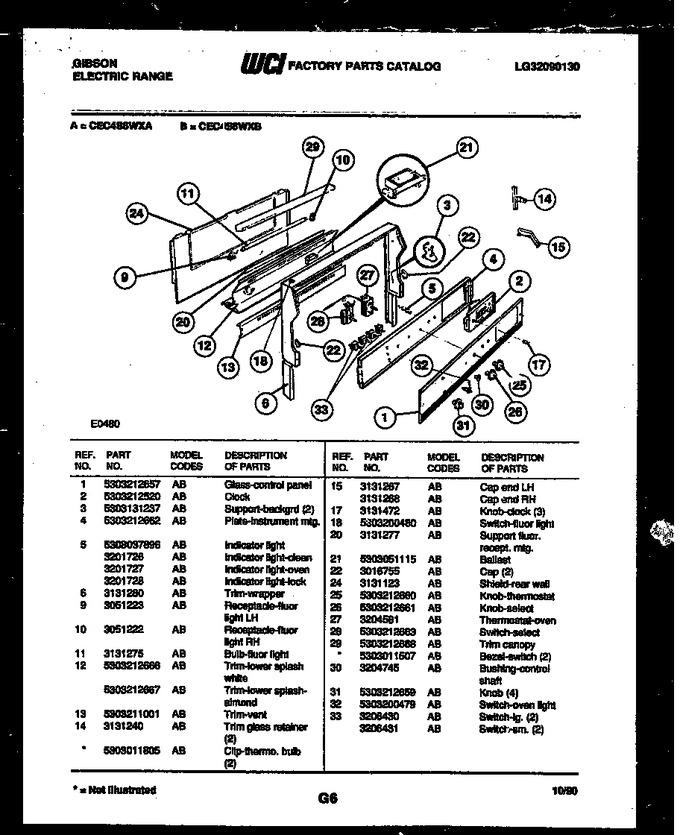

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303212657		Glass-control Panel		Appelez-nous	-
2	5303212520		Clock		Appelez-nous	-
3	5303131237		Support-backgrd (2)		Appelez-nous	-
4	5303212662		Plate, Instrument Mtg		Appelez-nous	-
5	5308037896		Indicator Light				$ 39.75
6	3131280		Trim-wrapper		Appelez-nous	-
9	3051223		Receptacle Fluor Light Lh		Appelez-nous	-
10	3051222		Receptacle Fluor Light Rh		Appelez-nous	-
11	3131275		Bulb-fluor Light				$ 49.40
12	5303212667		Trim-lower Splash-almond		Appelez-nous	-
12	5303212666		Trim-lower Splash White		Appelez-nous	-
13	5303211001		Trim-vent		Appelez-nous	-
14	3131240		Trim-glass Retainer, (2)		Appelez-nous	-
15	3131267		Cap-end Lh		Appelez-nous	-
17	3131472		Knob-clock (3)		Appelez-nous	-
18	5303200480		Switch-fluor Light				$ 125.53
20	3131277		Support Fluor. Recept. Mtg.		Appelez-nous	-
21	5303051115		Ballast		Appelez-nous	-
22	3016755		Cap (2)		Appelez-nous	-
24	3131123		Shield, Rear Wall		Appelez-nous	-
25	5303212660		Knob-thermostat		Appelez-nous	-
26	5303212661		Knob-select		Appelez-nous	-
27	3204581		Thermostat-oven		Appelez-nous	-
28	5303212663		Switch-select		Appelez-nous	-
29	5303212668		Trim-canopy		Appelez-nous	-
30	3204745		Bushing, Control Shaft		Appelez-nous	-
31	5303212659		Knob (4)		Appelez-nous	-
32	5303200479		Switch Oven Light				$ 7.04
33	3206430		Switch-lg. (2)		Appelez-nous	-
14A	5303011805		Clip-thermo. Bulb (2) (non-illustrated)		Appelez-nous	-
15A	3131268		Cap-end Rh		Appelez-nous	-
29A	5303011507		Bezel-switch (2) (non-illustrated)				$ 21.47
33A	3206431		Switch-sm. (2)		Appelez-nous	-
5A	3201726		Indicator Light - Clean		Appelez-nous	-
5B	3201727		Indicator Light - Oven		Appelez-nous	-
5C	3201728		Indicator-light Lock		Appelez-nous	-
