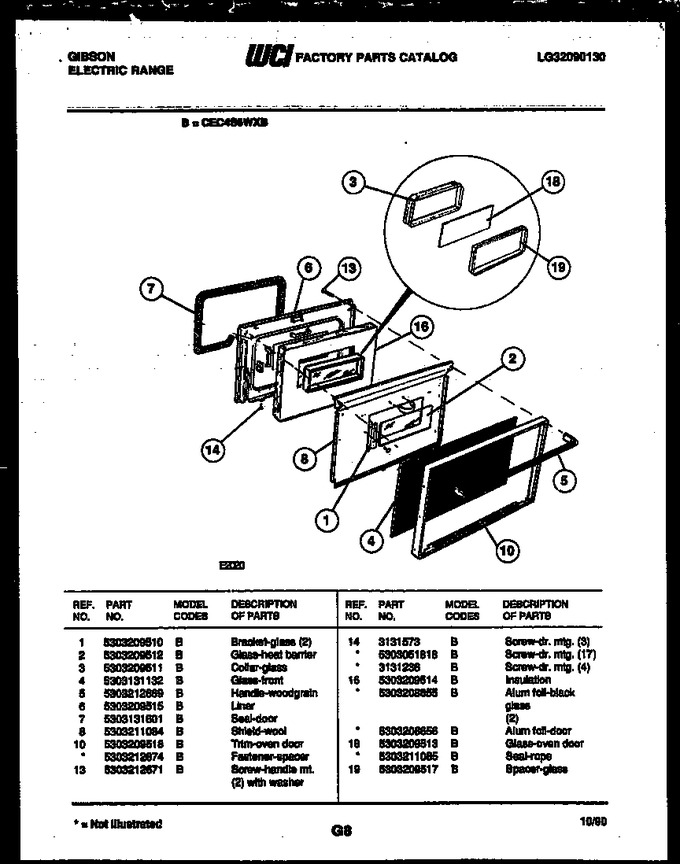

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303209510 | Bracket-glass (2) |
|
- | |||||
| 2 | 5303209512 | Glass-heat Barrier |
|
$ 150.41 | |||||
| 3 | 5303209511 | Collar-glass |
|
- | |||||
| 4 | 5303131132 | Glass, Front |
|
- | |||||
| 5 | 5303212669 | Handle-woodgrain |
|
- | |||||
| 6 | 5303209515 | Liner |
|
- | |||||
| 7 | 5303131601 | Seal, Door |
|
$ 374.63 | |||||
| 8 | 5303211084 | Shield-wool |
|
- | |||||
| 10 | 5303209518 | Trim-oven Door |
|
- | |||||
| 13 | 5303212671 | Screw-handle Mt (2) With Washer |
|
- | |||||
| 14 | 3131573 | Screw-dr. Mtg. (3) |
|
- | |||||
| 16 | 5303209514 | Insulation |
|
- | |||||
| 18 | 5303209513 | Glass Oven Door |
|
- | |||||
| 19 | 5303209517 | Spacer-glass |
|
- | |||||
| 10A | 5303212674 | Fastener-spacer (non-illustrated) |
|
- | |||||
| 14A | 5303051818 | Screw-dr Mtg (17) (non-illustrated) |
|
- | |||||
| 14B | 3131236 | Screw-dr Mtg (4) (non-illustrated) |
|
- | |||||
| 16A | 5303208655 | Alum Foil-black Glass (2) (non-illustrated) |
|
- | |||||
| 16B | 5303208656 | Alum Foil-door (non-illustrated) |
|
- | |||||
| 18A | 5303211085 | Seal-rope (non-illustrated) |
|
$ 44.00 |
