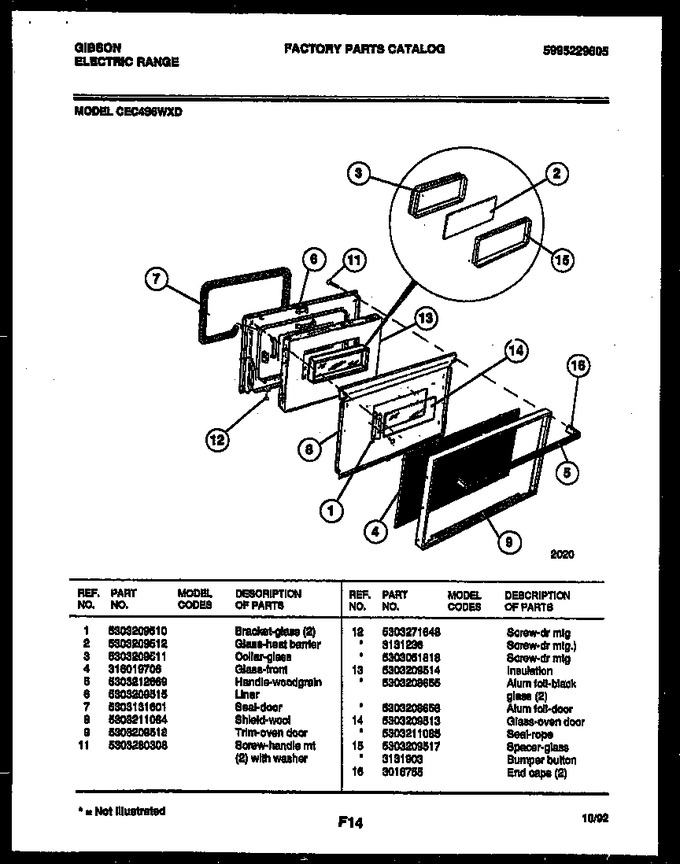

SELECT A DIAGRAM

02 - Backguard


03 - Door Parts


04 - Drawer Parts


05 - Cooktop Parts


06 - Body Parts


07 - Broiler Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303209510		Bracket-glass (2)		Appelez-nous	-
2	5303209512		Glass-heat Barrier				$ 150.41
3	5303209511		Collar-glass		Appelez-nous	-
4	316019706		Glass-front		Appelez-nous	-
5	5303212669		Handle-woodgrain		Appelez-nous	-
6	5303209515		Liner		Appelez-nous	-
7	5303131601		Seal, Door				$ 374.63
8	5303211084		Shield-wool		Appelez-nous	-
9	5303209518		Trim-oven Door		Appelez-nous	-
11	5303280308		Screw-handle Mt (2) With Washer				$ 16.96
12	5303271648		Screw-dr Mtg			Immediately	$ 13.46
13	5303209514		Insulation		Appelez-nous	-
14	5303209513		Glass Oven Door		Appelez-nous	-
15	5303209517		Spacer-glass		Appelez-nous	-
16	3016755		End Caps (2)		Appelez-nous	-
12A	3131236		Screw-dr Mtg (non-illustrated)		Appelez-nous	-
12B	5303051818		Screw-dr Mtg (non-illustrated)		Appelez-nous	-
13A	5303208655		Alum Foil-black Glass (2) (non-illustrated)		Appelez-nous	-
13B	5303208656		Alum Foil-door (non-illustrated)		Appelez-nous	-
14A	5303211085		Seal-rope (non-illustrated)				$ 44.00
15A	3131903		Bumper				$ 55.36
