View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Backguard
03 - Door Parts
04 - Drawer Parts
05 - Cooktop Parts
06 - Body Parts
07 - Broiler Parts
SELECT A DIAGRAM
New Model Search:

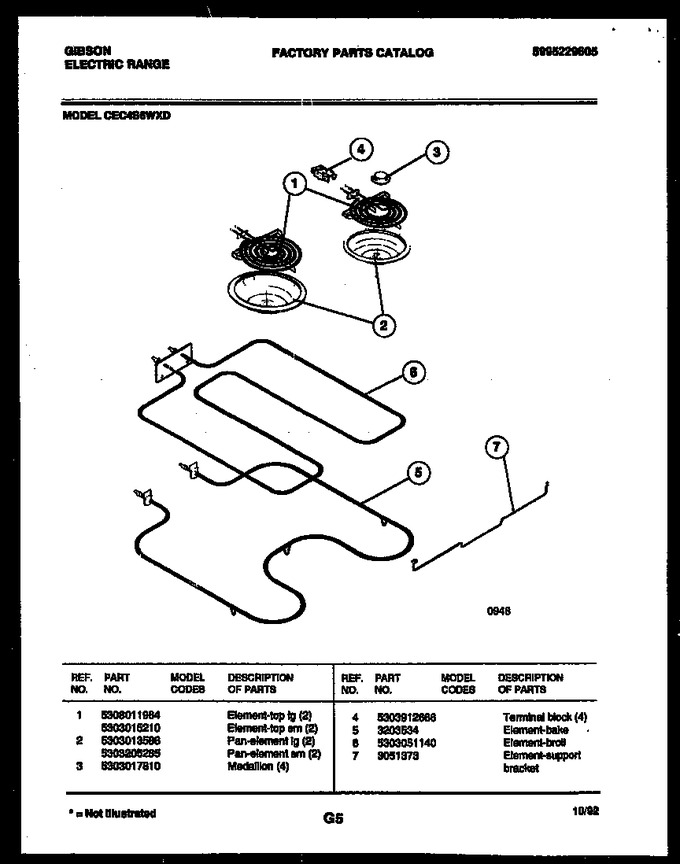

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5308011964 | Element-top Lg. (2) |
|
$ 209.08 | |||||
| 2 | 316048413 | Pan-element Lg (2) (Replaces: 5303013588) |
|
Immediately | $ 9.85 | ||||
| 3 | 5303017810 | Medallion (4) |
|
- | |||||
| 4 | 5303935058 | Terminal Block (4) (Replaces: 5303912666) |
|
Immediately | $ 13.81 | ||||
| 5 | 316075103 | Element-bake (Replaces: 3203534) |
|
Immediately | $ 42.36 | ||||
| 6 | 5303051140 | Element-broil |
|
$ 202.71 | |||||
| 7 | 3051373 | Element-support Bracket |
|
- | |||||
| 1A | 5303015210 | Element-top Sm (2) |
|
- | |||||
| 2A | 5303205285 | Pan - Element Sm (2) |
|
- |
