SELECT A DIAGRAM

01 - Cover

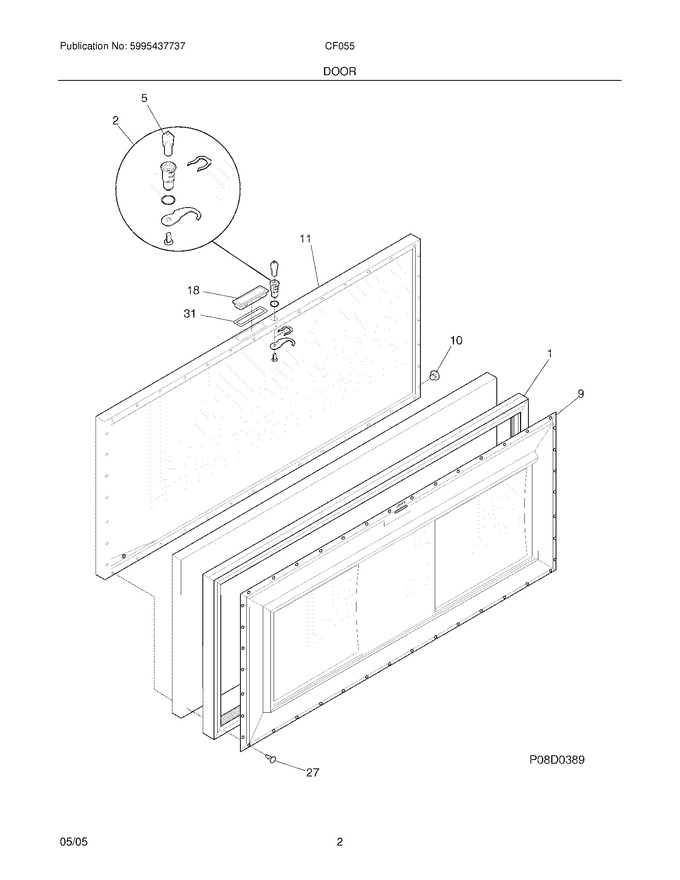

03 - Door


05 - Cabinet


07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216480801		Gasket-door, White				$ 181.83
2	5303925107		Lock Assy		Appelez-nous	-
9	216061504		Panel-inner Door,white ,frzr		Appelez-nous	-
10	216923001		Plug Button,1/4``,white				$ 9.87
11	216106013		Panel-outer Door,white		Appelez-nous	-
18	216140100		Handle,chrome		Appelez-nous	-
27	5303212828		Clip,panel Mtg				$ 16.63
31	08009392		Gasket, White		Appelez-nous	-
F5	297147700		Key, Lock   (Replaces: 216702900)			Immediately	$ 7.57
NI	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
NI	216858000		Screw,thno.8-18x.500ab,no.10		Appelez-nous	-
NI	5304406520		Clip,panel Mtg Kit ,(40)				$ 125.83

    View Diagram in Separate Window       Print Part List
