SELECT A DIAGRAM

01 - Cover


03 - Door


05 - Cabinet

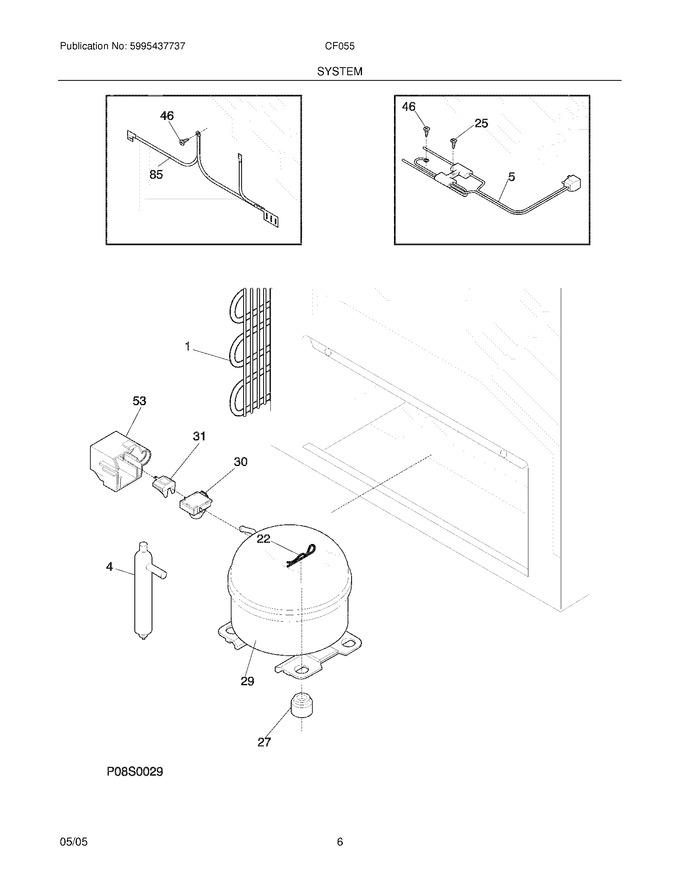

07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5300120779		Condenser		Appelez-nous	-
22	216056400		Clip,compressor Mtg ,spring		Appelez-nous	-
25	216707700		Screw,8-18 X 1/2		Appelez-nous	-
27	216498900		Grommet,compressor   (Replaces: 5308002681)				$ 13.01
30	216596800		Starter/,relay		Appelez-nous	-
46	216707800		Screw,ph ,8-32 X 1/2 ,wiring Harness		Appelez-nous	-
53	216347800		Cover Terminal,cover-comp Term		Appelez-nous	-
85	216818300		Wire-ground		Appelez-nous	-
F29	216966800		Compressor,assy		Appelez-nous	-
F31	216954208		Overload Protector   (Replaces: 216100106)				$ 74.42
F4	5303305677		Drier-filter   (Replaces: 216938600)			Immediately	$ 31.67
F5	216952000		Harness-main				$ 56.44
NI	216987800		Adapter-harness				$ 48.20

    View Diagram in Separate Window       Print Part List
