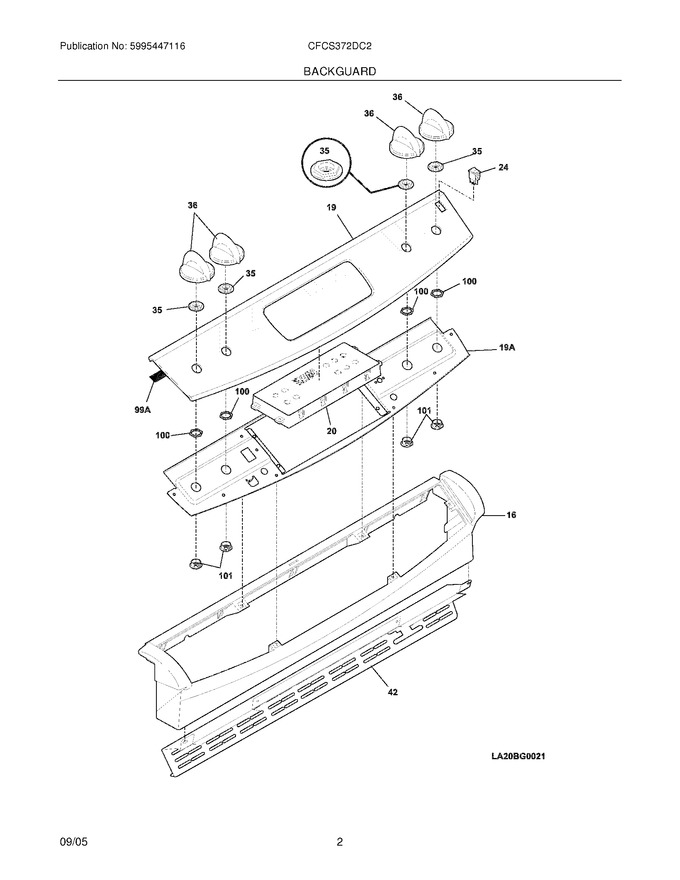

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318235021		Console,assy. ,black ,w/ End Caps				$ 347.39
19	318235169		Panel,control ,black		Appelez-nous	-
35	318233710		Retainer,control Panel ,black		Appelez-nous	-
36	318229311		Knob,control ,black				$ 45.47
42	318224321		Trim,vent ,black ,bottom		Appelez-nous	-
100	318233800		Nut,hex				$ 63.53
101	318233400		Bushing,retainer				$ 43.21
19A	318224402		Panel,control Mtg.		Appelez-nous	-
99A	318223900		Gasket,dark Grey			Immediately	$ 82.80
F20	318185403		Clock/timer,electronic ,black ,es300				$ 432.25
F24	5304527841		Switch-rocker,black   (Replaces: 316005602)			Immediately	$ 11.38
NI	316220805		Overlay,control ,black   (Replaces: 318214502)				$ 49.40
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303300265		Screw,8-18 X 0.500 ,chrome ,(3)				$ 15.17
