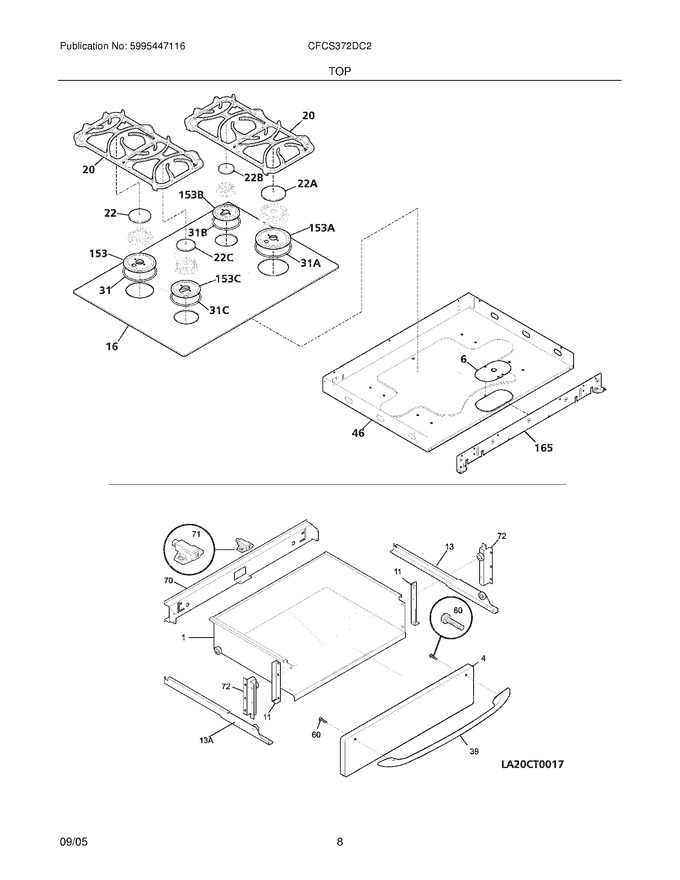

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304505701		Drawer   (Replaces: 318107104)			Immediately	$ 143.39
4	318107913		Panel,drawer ,stainless		Appelez-nous	-
6	318229900		Cover,wiring		Appelez-nous	-
11	318263100		Bracket,drawer ,(2)		Appelez-nous	-
13	5303311129		Channel,drawer ,rh		Appelez-nous	-
16	318223700		Main Top,assy. ,glass ,black				$ 851.29
20	318231300		Grate,black ,(2)				$ 432.71
22	316242800		Cap,11k Burner ,black				$ 132.41
31	316242001		Seal,12k Burner				$ 23.06
39	316270200		Handle,door ,black				$ 136.40
46	318225401		Box,burner		Appelez-nous	-
60	5304448455		Screw,10-14 X 1/2 ,(2) ,handle Mtg.		Appelez-nous	-
70	5303311143		Bracket,slide ,rear		Appelez-nous	-
71	318279800		Magnet & Spring Assy				$ 26.37
72	5303311145		Bracket & Wheel Assy		Appelez-nous	-
153	316241701		Skirt,12k Burner ,black				$ 80.00
165	318227500		Plate,mounting				$ 41.11
193	5303325173		Cap-plug		Appelez-nous	-
13A	5303311130		Channel,drawer ,lh		Appelez-nous	-
22A	316219800		Cap,14k Burner ,black				$ 163.17
22B	316206500		Cap,5k Burner ,black				$ 92.66
22C	316242900		Cap,9.5k Burner ,black				$ 51.61
31A	316242000		Seal,14k Burner				$ 73.71
31B	316242003		Seal,5k Burner				$ 15.17
31C	316242002		Seal,9.5k Burner				$ 25.02
F153	316241901		Skirt,5k Burner ,black				$ 82.32
F153	316264901		Skirt,14k Burner ,black				$ 85.39
F153	316241801		Skirt,9.5k Burner ,black				$ 79.01
NI	318248600		Bracket,drawer Channel		Appelez-nous	-
NI	318163600		Cleaner,cooktop		Appelez-nous	-
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303300265		Screw,8-18 X 0.500 ,chrome ,(3)				$ 15.17
