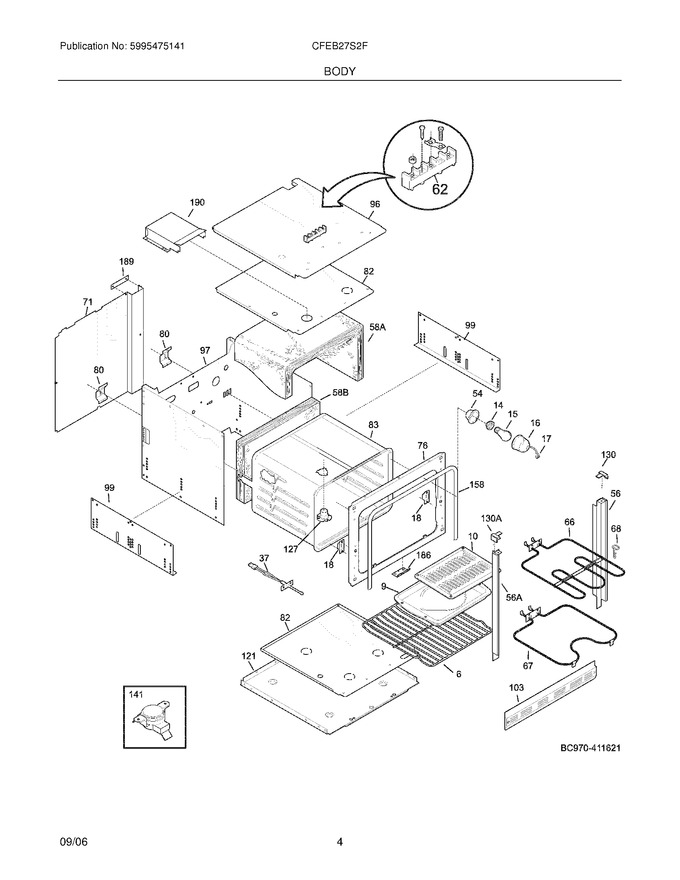

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	318345200		Rack,oven ,(2)				$ 84.89
9	5303317977		Pan,broiler		Appelez-nous	-
10	5303317976		Insert,broiler Pan		Appelez-nous	-
14	316116400		Receptacle,oven Light   (Replaces: 318224000)			Immediately	$ 56.10
15	40A15		Bulb/lamp,light   (Replaces: 5303013071)			Immediately	$ 1.98
16	5304524341		Lens,oven Light ,glass   (Replaces: 08011086)			Immediately	$ 14.18
17	5304400195		Retainer,light Cover		Appelez-nous	-
18	318090310		Latch-door   (Replaces: 318090300)			Immediately	$ 44.61
54	318222400		Housing,oven Light				$ 58.22
56	318034114		Trim,bodyside ,white ,rh				$ 69.09
62	5304409888		Terminal Block   (Replaces: 316056000)			Immediately	$ 26.69
66	318255606		Element,broil ,3400w   (Replaces: 318255601)			Immediately	$ 197.39
68	5304403015		Support,hanger ,(2) ,broil Element				$ 35.04
71	318071110		Shield-rear Wall		Appelez-nous	-
76	318056107		Front-oven		Appelez-nous	-
80	318192400		Spring,oven				$ 312.53
82	5303304699		Shield-insulation		Appelez-nous	-
83	318089523		Liner,oven Assy		Appelez-nous	-
96	5303300093		Wrapper,oven Top		Appelez-nous	-
97	318066703		Wrapper,back And Sides   (Replaces: 318066702)		Appelez-nous	-
99	318284201		Panel,adjustable ,side ,(2)		Appelez-nous	-
103	5303316903		Trim,base ,white ,lower				$ 133.46
121	318145002		Wrapper,base		Appelez-nous	-
127	318072800		Adaptor Assy		Appelez-nous	-
130	5303299671		End-cap,white,rh		Appelez-nous	-
158	318053311		Seal,oven Door				$ 30.31
186	318039502		Bracket,trim ,white		Appelez-nous	-
189	318042500		Plate,retainer		Appelez-nous	-
190	5303299666		Tube-oven Vent		Appelez-nous	-
56A	318034115		Trim,bodyside ,white ,lh		Appelez-nous	-
58A	318285004		Insulation,oven Wrapper		Appelez-nous	-
58B	318285003		Insulation,oven Back				$ 16.96
59A	5303320844		Tube,oven Vent		Appelez-nous	-
F130	5303299672		End-cap,white,lh		Appelez-nous	-
F141	318003602		Thermostat,safety				$ 110.09
F37	316217002		Probe,oven Temp			Immediately	$ 61.23
F67	318255100		Element,bake ,2300w			Immediately	$ 204.07
NI	5303323277		Screw (8-18x13/32)				$ 8.66
NI	316205500		Nut-10-32   (Replaces: 5303323144)				$ 11.34
NI	5303323139		Screw,10-24 X 0.906				$ 13.46
NI	318078528		Box & Wires Assy		Appelez-nous	-
NI	318232524		Wiring Harness,main		Appelez-nous	-
NI	5303320489		Plug,hinge Hole		Appelez-nous	-
NI	5303323136		Screw-ground		Appelez-nous	-
NI	3201861		Screw,6 X 0.375 ,(4)				$ 0.76
NI	08002868		Screw,10-24 X 0.500 ,probe,thrm Brkt ,shield,drwr,box				$ 14.18
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303307980		Screw,8-32 X 0.437 ,(4)			Immediately	$ 14.18

    View Diagram in Separate Window       Print Part List
