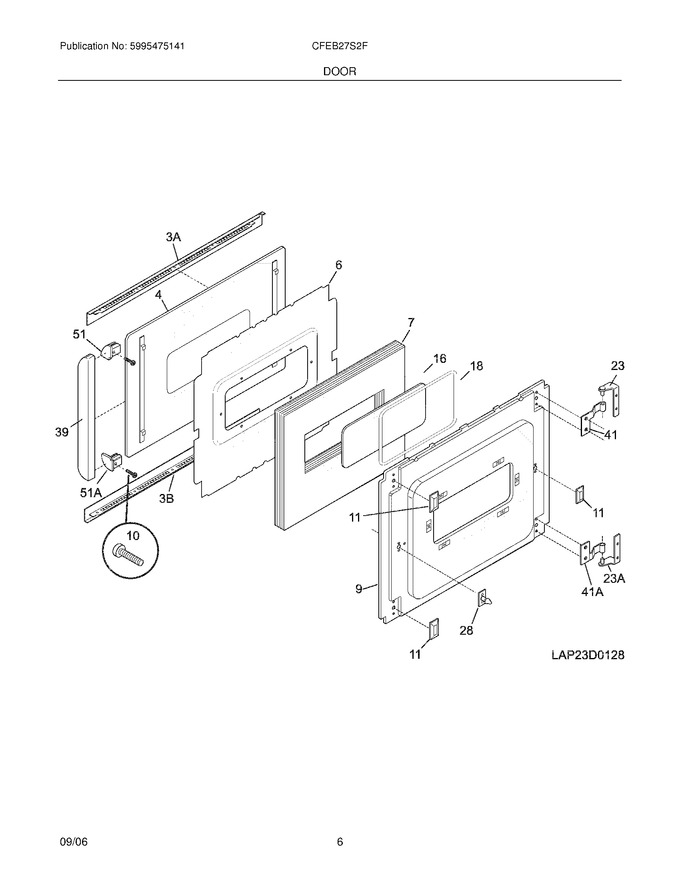

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	318211900		Glass,door ,white ,outer		Appelez-nous	-
6	5303316954		Shield-insulation		Appelez-nous	-
7	318285020		Insulation,oven Door		Appelez-nous	-
9	5303320491		Liner-oven Door		Appelez-nous	-
10	5303300265		Screw,8-18 X 1/2 ,(2)				$ 15.17
11	5303320493		Cover-hinge Cutout				$ 6.93
16	5303324250		Glass,door ,13 1/2 X 6 1/2				$ 184.54
18	318053204		Seal,rope ,lower Oven				$ 63.05
23	5303299712		Hinge-oven Door, Upper, Assy		Appelez-nous	-
28	318090220		Strike-door				$ 57.04
39	318229100		Handle,door ,white				$ 187.69
41	5303299746		Hinge-oven Door,upper		Appelez-nous	-
51	5303299738		Bracket, Handle Mtg, White, Upper				$ 98.86
23A	5303299711		Hinge-oven Door, Lower, Assy		Appelez-nous	-
3A	5303299730		Trim-oven Door, White, Upper		Appelez-nous	-
3B	5303299731		Trim,oven Door ,white ,upper		Appelez-nous	-
41A	5303299744		Hinge-oven Door,lower		Appelez-nous	-
51A	5303299739		Bracket, Handle Mtg, White, Lower				$ 172.57
NI	5304453707		Screw,8-10 X 3/8 ,(4)   (Replaces: 5303300155)			Immediately	$ 15.92
NI	5303320489		Plug,hinge Hole		Appelez-nous	-
NI	5304453707		Screw, 8-32 X 3/8   (Replaces: 5303311333)			Immediately	$ 15.92
NI	5303323277		Screw (8-18x13/32)				$ 8.66
