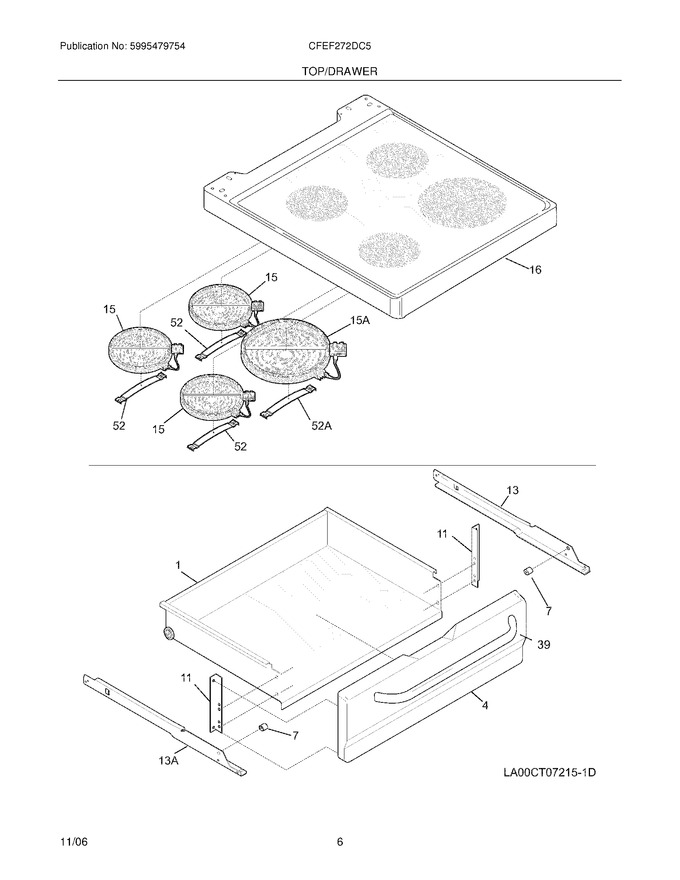

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303325610		Drawer				$ 212.52
4	318259001		Panel,drawer Front ,stainless				$ 238.04
7	318332200		Roller,nylon		Appelez-nous	-
11	5303324427		Bracket,drawer Support ,(2)				$ 5.20
13	318018100		Channel-drawer,rh			Immediately	$ 30.01
15	318178110		Element,surface ,6`` ,1200 W ,(2)   (Replaces: 318198830)			Immediately	$ 122.86
16	318228702		Main Top,steel/glass ,black		Appelez-nous	-
39	318362822		Handle Assembly,door ,black ,w/spacer   (Replaces: 318362802)				$ 104.05
52	318122006		Spring,element Mtg ,small				$ 66.25
13A	318018101		Channel-drawer,lh				$ 63.11
15A	318198834		Element,surface ,large/8`` ,2200 W				$ 205.36
52A	318122007		Spring,element Mtg ,large				$ 53.45
NI	318231852		Harness,wiring ,limiter		Appelez-nous	-
NI	318199902		Harness,wiring ,cooktop		Appelez-nous	-
NI	318163602		Cleaner,stainless Steel				$ 26.51
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
