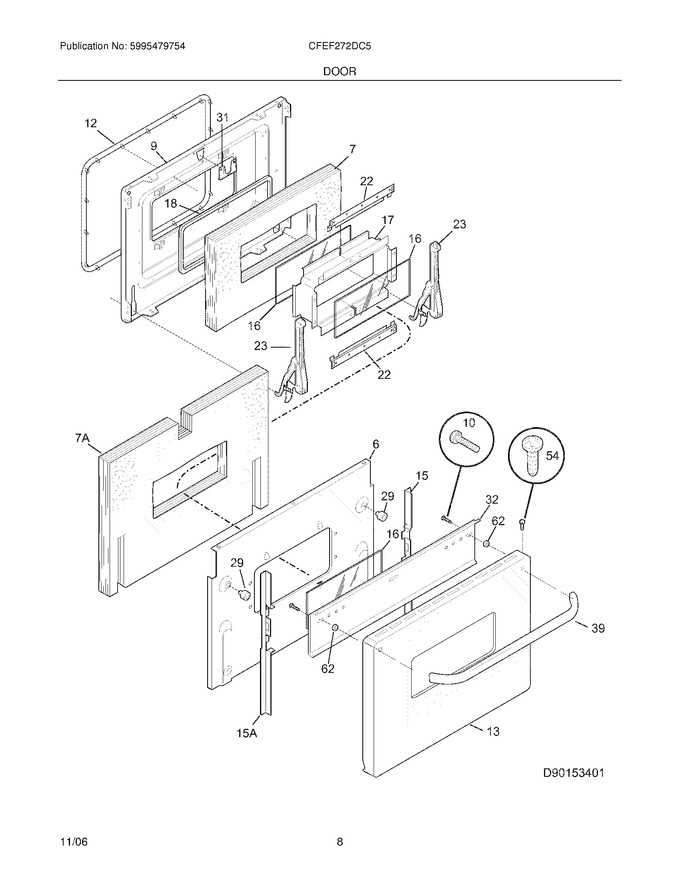

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	5303325079		Shield,oven Door		Appelez-nous	-
7	318285023		Insulation,oven Door		Appelez-nous	-
9	318156406		Liner,oven Door				$ 150.15
10	732022890		Screw,10-24 X 0.625   (Replaces: 5303324305)			Immediately	$ 1.84
12	5303325040		Seal,oven Door				$ 96.34
13	318187964		Stainless Panel,oven Door ,w/glass				$ 464.05
15	5303311153		Bracket,glass Mtg ,rs				$ 10.87
16	5303310533		Glass,oven Door ,6.50 X 15.50 ,inner ,heat Barrier				$ 220.55
17	318139000		Spacer,oven Door Glass ,inner Frame		Appelez-nous	-
18	318293500		Gasket,door Glass Seal				$ 31.61
22	5303310511		Bar,glass Retainer		Appelez-nous	-
23	318024721		Hinge,lower Door ,(2)		Appelez-nous	-
29	318147412		Bumper,base				$ 7.33
31	5303310536		Latch,oven Door				$ 30.66
32	318057203		Deflector-handle				$ 5.63
39	318362822		Handle Assembly,door ,black ,w/spacer   (Replaces: 318362802)				$ 104.05
54	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
62	5303310504		Spacer,handle ,oven Door ,(2)		Appelez-nous	-
15A	5303311154		Bracket,glass Mtg ,ls		Appelez-nous	-
7A	318285024		Insulation,oven Door		Appelez-nous	-
NI	318163602		Cleaner,stainless Steel				$ 26.51
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	5303307980		Screw,8-32 X 0.437 ,(4)			Immediately	$ 14.18
