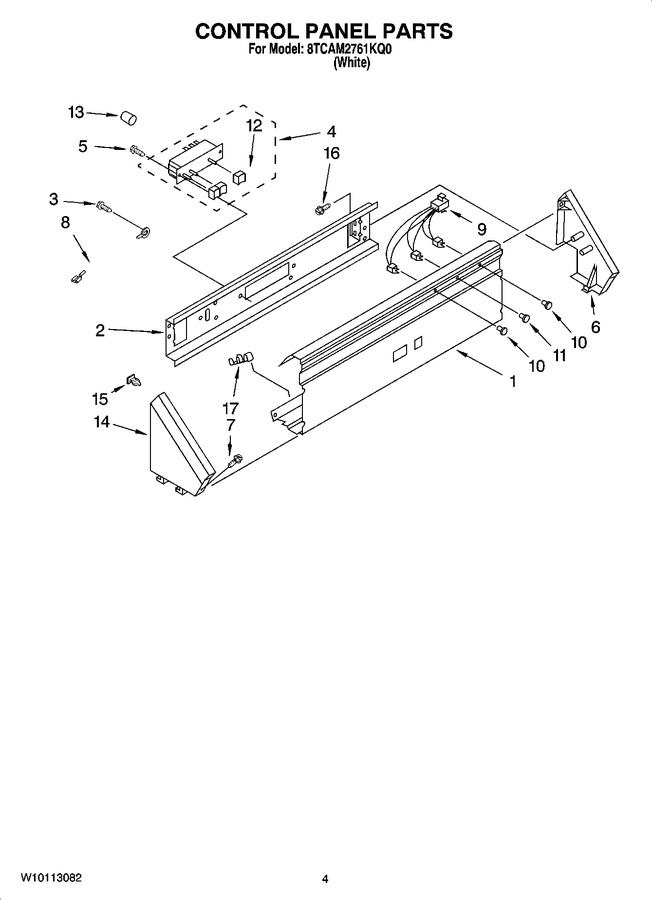

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10096260 | Panel, Console |
|
- | |||||
| 2 | 3361029 | Bracket, Control |
|
$ 34.04 | |||||
| 3 | 3400073 | Screw, Ground |
|
- | |||||
| 4 | W10330142 | Switch, Cycle Selector (includes Item 12) (Replaces: 8316440) |
|
$ 231.35 | |||||
| 5 | WPW10139210 | Screw, 8-18 X 5/16 (Replaces: 3390646) |
|
$ 6.75 | |||||
| 6 | W10096340 | End Cap (r.h.) |
|
$ 28.26 | |||||
| 7 | 8281182 | Screw, 8-18 X 1.25 |
|
$ 5.33 | |||||
| 8 | 3398893 | Wire, Ground |
|
- | |||||
| 9 | W10858647 | Lights, Indicator (Replaces: 3352457) |
|
$ 35.18 | |||||
| 10 | WP3348109 | Lens, Amber (2) (Replaces: 3348109) |
|
Immediately | $ 11.26 | ||||
| 11 | WP3348110 | Lens, Yellow (1) (Replaces: 3348110) |
|
$ 6.96 | |||||
| 12 | WPW10330137 | Pushbutton (3) (Replaces: 8316433) |
|
Immediately | $ 305.60 | ||||
| 13 | W10491983 | Cap, Terminal (Replaces: 359702) |
|
- | |||||
| 14 | W10096320 | End Cap (l.h.) |
|
$ 29.83 | |||||
| 15 | 689559 | Nut, Push-in (2) |
|
- | |||||
| 16 | WPW10109200 | Screw, End Cap To Bracket (4) (Replaces: 97787) |
|
Immediately | $ 7.20 | ||||
| 17 | W10113937 | Clip, Grounding (Replaces: 357572) |
|
$ 9.75 |
