Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP3355758 Cap, Agitator   (Replaces: 3355758) In-Stock Immediately $ 8.10

2 WP3949550 Washer   (Replaces: 3949550) In-Stock Immediately $ 9.98

3 WP358237 Screw & Washer (5-16-24 X 1)   (Replaces: 358237) In-Stock Immediately $ 7.97

4 3350151 Agitator Appelez-nous -
5 3360611 Tub Ring Special Order $ 88.45

6 WP3359586 Gasket, Tub Ring   (Replaces: 3359586) Special Order $ 81.11

7 WP21366 Nut, Spanner   (Replaces: 21366) In-Stock Immediately $ 8.00

8 8545860 Basket And Balance Ring Appelez-nous -
9 63125 Tub Special Order $ 234.68

10 WP389140 Block, Drive   (Replaces: 389140) In-Stock Immediately $ 24.74

11 W10814296 Gasket, Center Post   (Replaces: 383727) In-Stock Immediately $ 8.26

12 3956205 Balance Ring Special Order $ 75.59

13 WP8519815 Clip, Balance Ring (8)   (Replaces: 8519815) Special Order $ 7.51


    View Diagram in Separate Window     Print Icon   Print Part List

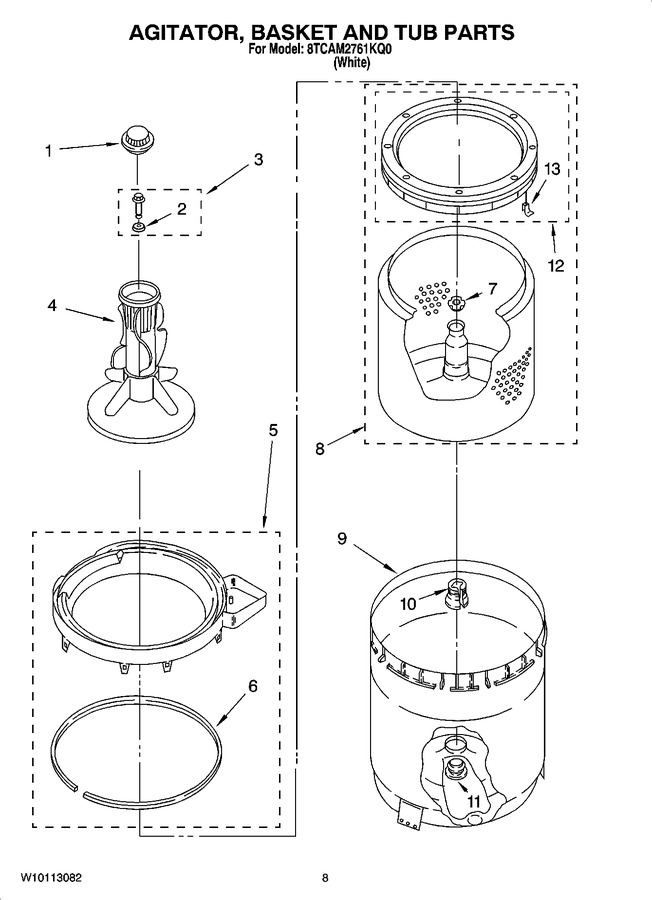

Diagram for 8TCAM2761KQ0
