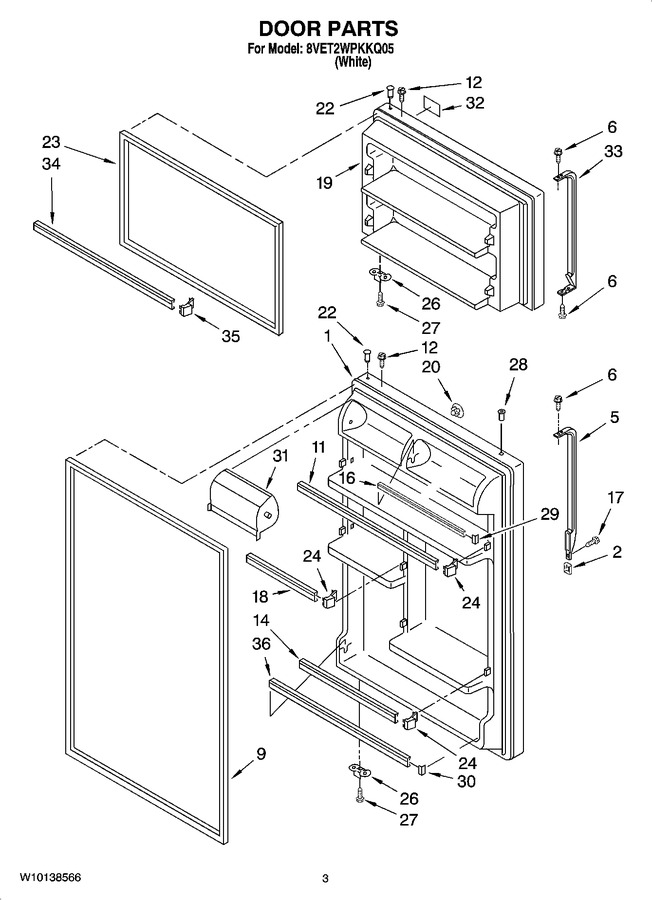

02 - Door Parts


03 - Liner Parts


04 - Unit Parts


05 - Shelf Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2183915		Refrigerator Door (includes 9 & 22)		Appelez-nous	-
2	WP2193353W		Handle, Trim   (Replaces: 2193353W)				$ 7.30
5	4388947		Handle   (Replaces: 2213112W)				$ 175.26
6	8534058		Screw				$ 8.87
9	2159061		Door Gasket, Magnetic (mist Beige)   (Replaces: 2202875)			Immediately	$ 165.30
11	2195944		Trim, Door Shelf				$ 47.99
12	WP8281206		Screw   (Replaces: 8281206)				$ 7.15
14	WP2195943		Trim, Door Shelf   (Replaces: 2195943)				$ 78.67
16	WP2201061		Trim, Door Shelf   (Replaces: 2195378)				$ 106.56
17	WP8281146		Screw   (Replaces: 8281146)				$ 6.80
18	2195945		Trim, Door		Appelez-nous	-
19	W11023679		Freezer Door (includes 22 & 23)   (Replaces: 2182489)				$ 650.01
20	WP2189000		Hole Plug   (Replaces: 2189000)			Immediately	$ 6.66
22	WP2314293		Thimble   (Replaces: 2314293)				$ 6.47
23	2159060		Door Gasket, Magnetic (mist Beige)   (Replaces: 2214967)				$ 288.01
24	WP2195915		Plug-trim   (Replaces: 2195915)				$ 11.76
26	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 12.03
27	WP681249		Screw   (Replaces: 489276)			Immediately	$ 7.07
28	WP2212648		Hole Plug   (Replaces: 2212648)				$ 7.02
29	WP2156007		Plug, Trim   (Replaces: 2156007)			Immediately	$ 6.89
30	WP2156006		Plug-trim   (Replaces: 2156006)			Immediately	$ 10.96
31	WP2218118		Compartment Door   (Replaces: 2218118)				$ 70.22
32	2195063		Nameplate		Appelez-nous	-
33	4388947		Handle   (Replaces: 2213111W)				$ 175.26
34	2195947		Trim-door (2)				$ 50.94
35	WP2195916K		Endcap (4)   (Replaces: 2195916)			Immediately	$ 11.30
36	WPW10421486		Trim, Door   (Replaces: 2195948)				$ 98.35
