01 - Cabinet Parts
02 - Door Parts

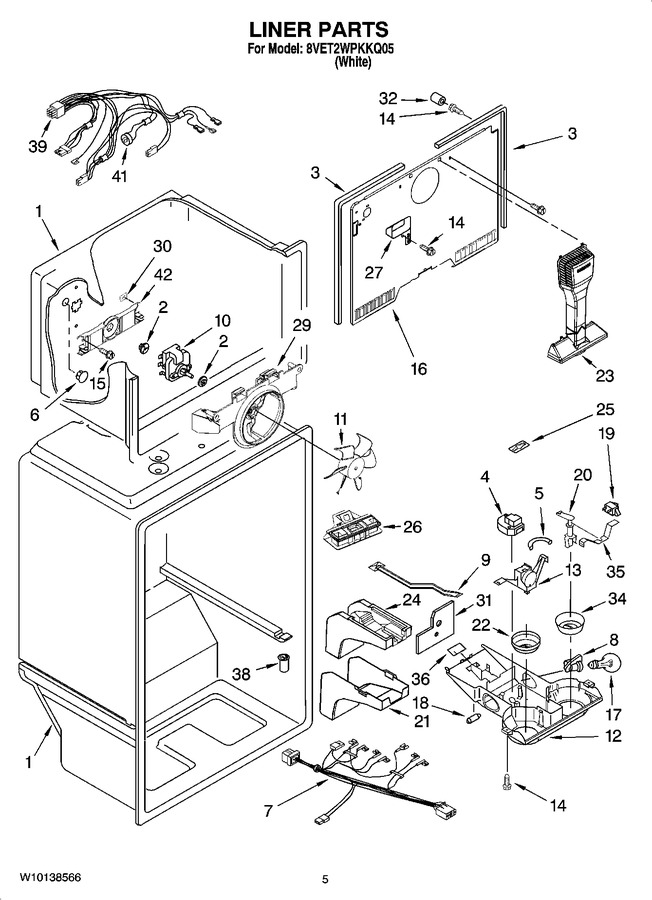

03 - Liner Parts
04 - Unit Parts
05 - Shelf Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | WP2264462 | Grommet (2) (Replaces: 2197380) |
|
Immediately | $ 39.57 | ||||
| 3 | WP2254360 | Gasket, Evaporator Cover (side) (Replaces: 2254360) |
|
$ 24.10 | |||||
| 4 | 2212769 | Timer, Defrost |
|
- | |||||
| 5 | 2212485 | Thermostat Tube Barrier |
|
$ 5.92 | |||||
| 6 | WP941839 | Hole, Plug (Replaces: 941839) |
|
$ 6.89 | |||||
| 7 | 2310174 | Wire Assembly, Control Box |
|
- | |||||
| 8 | 4387478 | Socket, Light (2) (Replaces: 2162085) |
|
Immediately | $ 99.14 | ||||
| 9 | 2179858 | Damper, Air |
|
- | |||||
| 10 | WPW10189703 | Fan Motor (Replaces: 2219660) |
|
Immediately | $ 63.15 | ||||
| 11 | WP2163777 | Fan Blade (Replaces: 2200509) |
|
Immediately | $ 59.54 | ||||
| 12 | 2200820 | Control Box |
|
- | |||||
| 13 | 2200859 | Thermostat Assy. (includes Illus. 5 & 18) |
|
$ 114.36 | |||||
| 14 | WP489478 | Screw (Replaces: 489478) |
|
$ 6.98 | |||||
| 15 | WP488163 | Screw (Replaces: 488208) |
|
$ 6.79 | |||||
| 16 | 2320194 | Cover, Evaporator |
|
- | |||||
| 17 | 8009 | Light Bulb (2) (Replaces: 527949) |
|
Immediately | $ 16.80 | ||||
| 18 | 2200831 | Weight, Thermal |
|
- | |||||
| 19 | W11384469 | Rocker Arm Switch (Replaces: 1118894) |
|
Immediately | $ 33.51 | ||||
| 20 | 2179859 | Post, Damper |
|
- | |||||
| 21 | 2176281 | Cover, Air Diffuser |
|
$ 41.64 | |||||
| 22 | W10829461 | Knob, Thermostat (Replaces: 2200863) |
|
$ 27.35 | |||||
| 23 | WP2254354 | Air Tower (Replaces: 2254354) |
|
$ 92.78 | |||||
| 24 | WP2189452 | Air Diffuser, Bottom (Replaces: 2189452) |
|
Immediately | $ 112.31 | ||||
| 25 | 2176341 | Clip, Defrost Timer |
|
- | |||||
| 26 | 2212439 | Air Separator Assembly |
|
- | |||||
| 27 | 2205003 | Cover, Hole |
|
- | |||||
| 29 | 2254453 | Bracket Fan Motor |
|
$ 45.87 | |||||
| 30 | 2320183 | Retainer-screw |
|
- | |||||
| 31 | 2204639 | Shield, Heat |
|
- | |||||
| 32 | WP487996 | Cap (Replaces: 487996) |
|
$ 7.43 | |||||
| 34 | 2302536 | Knob, Damper |
|
$ 27.08 | |||||
| 35 | 2163810 | Bracket, Damper Knob |
|
$ 6.01 | |||||
| 36 | WP2205079 | Seal, Rearthermostat (Replaces: 2205079) |
|
$ 8.58 | |||||
| 38 | WP2210509 | Release Valve (Replaces: 2171931) |
|
$ 84.99 | |||||
| 39 | 2310099 | Wire Assembly, F.c. (includes Illus. 41) |
|
- | |||||
| 41 | WP2321800 | Defrost, Bi-metal (Replaces: 2319915) |
|
Immediately | $ 108.78 | ||||
| 42 | 2254454 | Bracket, Evap. Fan, Rear |
|
Immediately | $ 64.67 |
