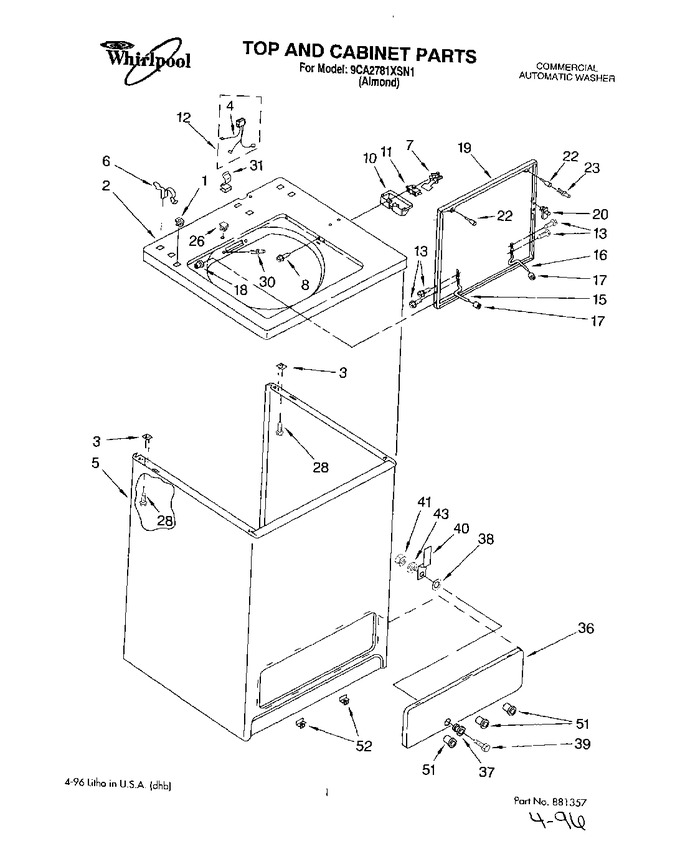

9CA2781XSN1 | TransGlobal : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
1	358473	Nut, Push-in (2)			$ 5.84
2	3351620	Top (almond)	Appelez-nous	-
3	WP62750	Spacer, Cabinet To Top (4) (Replaces: 62750)		Immediately	$ 6.92
4	62888	Terminal			$ 37.28
5	3349380	Cabinet (almond)	Appelez-nous	-
6	WP62780	Clip, Top & Cabinet & Rear Panel (2) (Replaces: 62780)		Immediately	$ 7.02
7	357347	Actuator, Lid Switch	Appelez-nous	-
8	354764	Screw & Washer, Lid Switch (2)	Appelez-nous	-
10	WP359231	Shield, Lid Switch (Replaces: 359231)			$ 7.58
11	W10820036	Switch, Lid (Replaces: 661517)		Immediately	$ 27.45
12	63833	Harness, Lid Switch	Appelez-nous	-
13	WPW10119828	Screw, Lid Hinge Mounting (4) (Replaces: 355274)		Immediately	$ 6.47
15	WP54584	Hinge, Lid (l.h.) (Replaces: 54584)			$ 30.09
16	WP91770	Hinge, Lid (r.h.) (Replaces: 91770)			$ 24.71
17	19119	Bumper, Lid Hinge			$ 5.75
18	WP21258	Bearing, Lid Hinge (2) (Replaces: 21258)		Immediately	$ 6.87
19	3350160	Lid (almond)	Appelez-nous	-
20	WP358684	Strike, Lid Switch (Replaces: 358684)		Immediately	$ 6.90
22	356908	Bumper, Lid (2)			$ 8.35
23	WP356907	Rivet (2) (Replaces: 356907)			$ 6.66
26	358472	Stop, Push-in Top	Appelez-nous	-
28	WP681414	Screw, 10-16 X 1/2 (4) (Replaces: 384435)		Immediately	$ 7.07
30	63554	Rivet, Serial Nameplate	Appelez-nous	-
31	WP90016	Clip, Harness (Replaces: 90016)			$ 10.19
36	3350105	Panel, Service (almond)	Appelez-nous	-
37	3349596	Housing, Lock	Appelez-nous	-
38	3348254	Clip, Lock	Appelez-nous	-
39	3349597	Lock Screw	Appelez-nous	-
40	3350381	Cam Lock	Appelez-nous	-
41	124829	Nut Jam	Appelez-nous	-
43	3348846	Washer	Appelez-nous	-
51	3350108	Sleeve (3)	Appelez-nous	-
52	3349373	Spacer (2)	Appelez-nous	-
