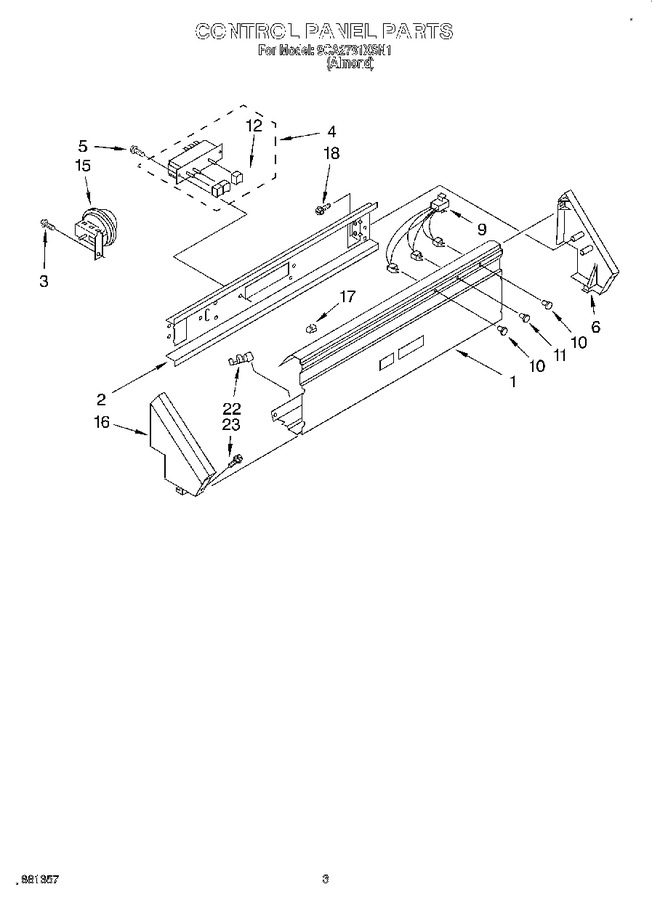

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3347634		Panel, Console		Appelez-nous	-
2	3361029		Bracket, Control				$ 34.04
3	WP90767		Screw, 8a X 3/8   (Replaces: 90767)			Immediately	$ 7.04
4	W10330142		Switch, Cycle Selector   (Replaces: 3355916)				$ 231.35
5	WP965173		Screw, 8-18 X 3/8   (Replaces: 9424101)			Immediately	$ 9.65
6	3347705		End Cap (r.h.)		Appelez-nous	-
9	W10858647		Lights, Indicator   (Replaces: 3352457)				$ 35.18
10	WP3348109		Lens, Amber (2)   (Replaces: 3348109)			Immediately	$ 11.26
11	WP3348110		Lens, Yellow (1)   (Replaces: 3348110)				$ 6.96
12	3348587		Pushbutton (3)				$ 12.40
15	3348542		Switch, Water Level		Appelez-nous	-
16	63789		Cap, End (l.h.)		Appelez-nous	-
17	689559		Nut, Push-in (2)		Appelez-nous	-
18	WPW10109200		Screw, End Cap To Bracket (4)   (Replaces: 97787)			Immediately	$ 7.20
22	W10113937		Clip, Grounding   (Replaces: 357572)				$ 9.75
23	WP388326		Screw, Console To Top (2)   (Replaces: 64211)				$ 7.30
