01 - Cover
03 - Wrapper
04 - Control Panel

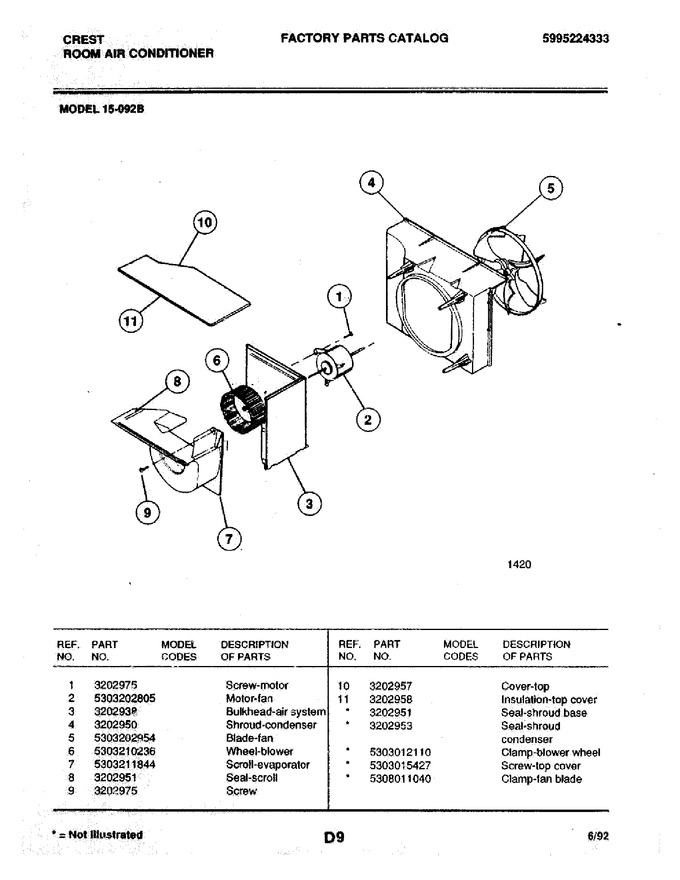

05 - Motor/fan
06 - Compressor
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3202975 | Screw Motor |
|
- | |||||
| 2 | 5303202805 | Motor-fan |
|
- | |||||
| 3 | 3202938 | Bulkhead-air System |
|
- | |||||
| 4 | 3202950 | Shroud-condenser |
|
- | |||||
| 5 | 5303202954 | Blade-fan |
|
- | |||||
| 6 | 5303210236 | Wheel-blower |
|
- | |||||
| 7 | 5303211844 | Scroll-evaporator |
|
- | |||||
| 8 | 3202951 | Seal-scroll |
|
- | |||||
| 9 | 3202975 | Screw |
|
- | |||||
| 10 | 3202957 | Cover-top |
|
- | |||||
| 11 | 3202958 | Insulation-top Cover |
|
- | |||||
| 3202951 | Seal-shroud/base |
|
- | ||||||
| 5308011040 | Clamp - Fan Blade |
|
- | ||||||
| 5303015427 | Screw-top Cover |
|
- | ||||||
| 5303012110 | Clamp - Blower Wheel |
|
$ 8.14 | ||||||
| 3202953 | Seal-shroud/condenser |
|
- |
