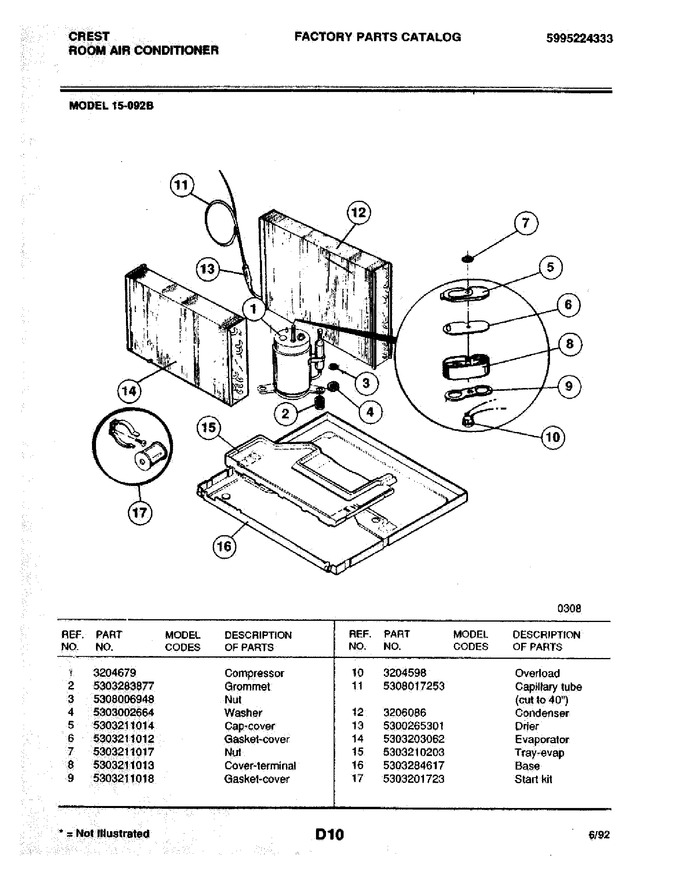

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Wrapper
04 - Control Panel
05 - Motor/fan
06 - Compressor
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3204679 | Compressor |
|
- | |||||
| 2 | 5303283877 | Grommet |
|
- | |||||
| 3 | 5308006948 | Nut |
|
- | |||||
| 4 | 5303002664 | Washer |
|
- | |||||
| 5 | 5303211014 | Cap-cover |
|
- | |||||
| 6 | 5303211012 | Gasket-cover |
|
- | |||||
| 7 | 5303211017 | Nut |
|
- | |||||
| 8 | 5303211013 | Cover-terminal |
|
- | |||||
| 9 | 5303211018 | Gasket-cover |
|
- | |||||
| 10 | 3204598 | Overload |
|
- | |||||
| 11 | 5308017253 | Capillary Tube, Cut To 40`` |
|
- | |||||
| 12 | 3206086 | Condenser |
|
- | |||||
| 13 | 5300265301 | Drier |
|
$ 284.30 | |||||
| 14 | 5303203062 | Evaporator |
|
- | |||||
| 15 | 5303210203 | Tray-evaporator |
|
- | |||||
| 16 | 5303284617 | Base |
|
- | |||||
| 17 | 5303201723 | Start Kit |
|
- |
