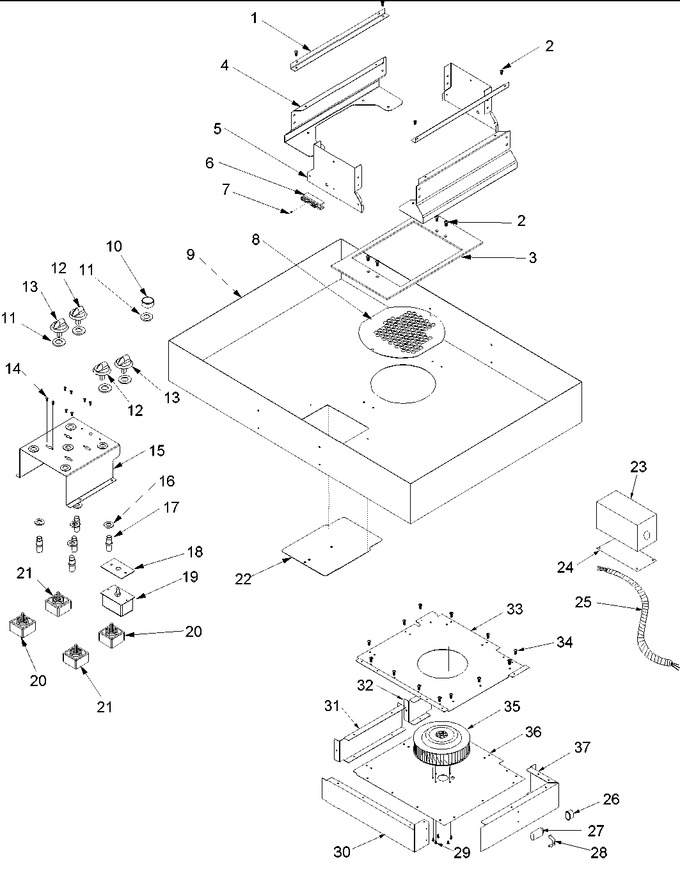

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 31902801 | Brkt, Plenum Mtg |
|
- | |||||
| 2 | 31750422 | Screw, No.8-18 X 1/4 P Trs Hd |
|
- | |||||
| 3 | 31885301 | Insul,control Shield 7`` |
|
- | |||||
| 4 | Y0315710 | Plenum, Side |
|
- | |||||
| 5 | Y0315709 | Plenum, End |
|
- | |||||
| 6 | Y0042191 | Term Blk Eo&go 1m-2.5m-5m-10m |
|
- | |||||
| 7 | W11772394 | Screw, No.8-18 X 3/8 Pph (blk) (Replaces: 31750416) |
|
Immediately | $ 10.94 | ||||
| 8 | 31902901CG | Shield, Fan (enameled) |
|
- | |||||
| 9 | 31904901 | Box, Burner |
|
- | |||||
| 10 | 32031307B | Knob, Fan (blk) |
|
- | |||||
| 11 | 31985001 | Cover, Switch Hole |
|
- | |||||
| 12 | 31918403B | Knob,dual Infinite(black) |
|
- | |||||
| 13 | 31918401B | Knob, Infinite(black) |
|
- | |||||
| 14 | WP488234 | Screw (Replaces: M0234422) |
|
$ 6.07 | |||||
| 15 | 31904701 | Brkt, Switch Mtg |
|
- | |||||
| 16 | 31750017 | Washer, Spacer Ind. Light |
|
- | |||||
| 17 | Y0316314 | Light, Indicator (red) |
|
- | |||||
| 18 | 31726301 | Shield, Switch-variable |
|
- | |||||
| 19 | Y0316913 | Control, Fan Speed Variable |
|
$ 104.04 | |||||
| 20 | WP74011243 | Switch, Infinite (Replaces: 31891202) |
|
$ 115.88 | |||||
| 21 | 12002422 | Switch, Dual (robert Shaw) (Replaces: 31875401) |
|
$ 155.75 | |||||
| 22 | 31743301 | Panel, Access |
|
- | |||||
| 23 | 31755001 | Box, Junction-motor |
|
- | |||||
| 24 | 31755101 | Cover, Junction Box |
|
- | |||||
| 25 | Y0315698 | Assy, Conduit |
|
- | |||||
| 26 | 31756201 | Cap, Capacitor |
|
- | |||||
| 27 | 0316874 | Motor Capacitor-fan |
|
- | |||||
| 28 | 0317082 | Brkt, Capacitor |
|
- | |||||
| 29 | 31750722 | Screw (plain M4 Metric .236) |
|
- | |||||
| 30 | 31754301 | Plenum, Front |
|
- | |||||
| 31 | 31754501 | Plenum, Duct Filler |
|
- | |||||
| 32 | 31754401 | Plenum, Side |
|
- | |||||
| 33 | 31904801 | Plenum, Top |
|
- | |||||
| 34 | 31750422 | Screw, No.8-18 X 1/4 P Trs Hd |
|
- | |||||
| 35 | Y0315697 | Assy, Fan/motor |
|
- | |||||
| 36 | 31754101 | Plenum, Bottom |
|
- | |||||
| 37 | 31754201 | Plenum, Rear |
|
- | |||||
| NI | 0317104 | Bushing, Anti-short |
|
- | |||||
| NI | Y0316989 | Connector, Box (1/2``) |
|
- | |||||
| NI | 31754601 | Bracket, Conduit |
|
- | |||||
| NI | 31756402 | Conduit, 3/8`` X 5 1/4`` |
|
- | |||||
| NI | 31756501 | Connector, Str 3/8 Snap |
|
- | |||||
| NI | 31755301 | Snap Bushing |
|
- | |||||
| NI | 31727801 | Connector, Snap-tite (90 Deg) |
|
- |
