SELECT A DIAGRAM

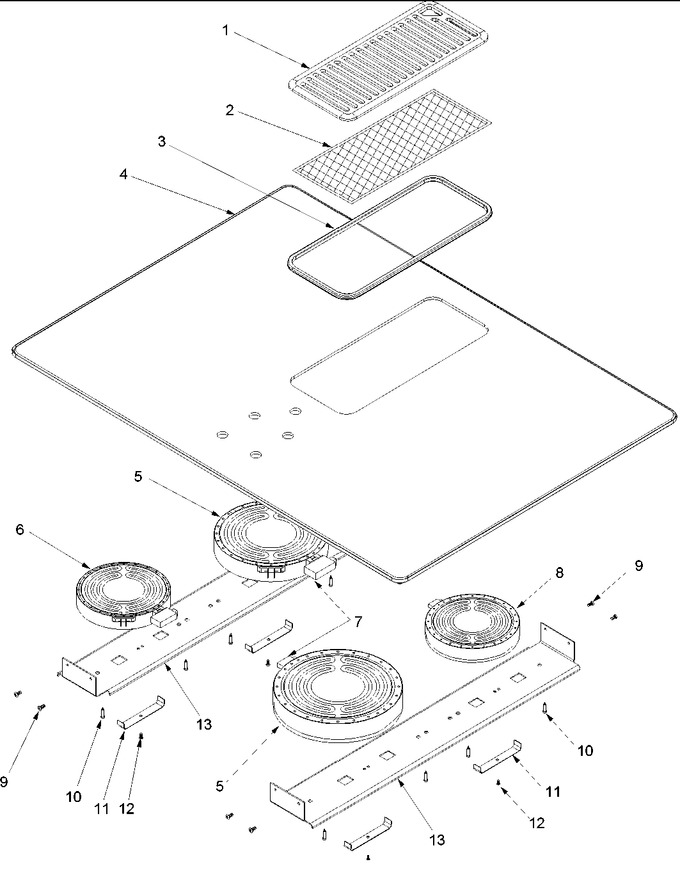

01 - Cavity
02 - Main Top
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 31898301B | Cover, Vent (black) |
|
- | |||||
| 2 | 31903101B | Filter, Exhaust (pntd) |
|
- | |||||
| 3 | 31902501B | Gasket, Vent Cover |
|
- | |||||
| 4 | 31904205B | Assy,glass&frame(black) |
|
- | |||||
| 5 | 32054801 | Element, Dual Radiant |
|
- | |||||
| 6 | 31938901 | Element, Ribbon 6`` 240v/1200w |
|
- | |||||
| 7 | 31909701 | Element, Dual Radiant |
|
- | |||||
| 8 | W10823699 | Element, Ribbon 7`` 240v/1500w (Replaces: 31939001) |
|
Immediately | $ 145.67 | ||||
| 9 | 31750420 | Screw, No.8-32 X3/8 P Trs Hd Lp |
|
- | |||||
| 10 | 31750715 | Screw, Shoulder Ab 6-20 X .825 |
|
- | |||||
| 11 | Y0306683 | Spring, Element |
|
- | |||||
| 12 | 31750425 | Screw, No.8-18 X 3/8 Pph |
|
- | |||||
| 13 | 31904101 | Brkt, Element |
|
- |
