New Model Search:

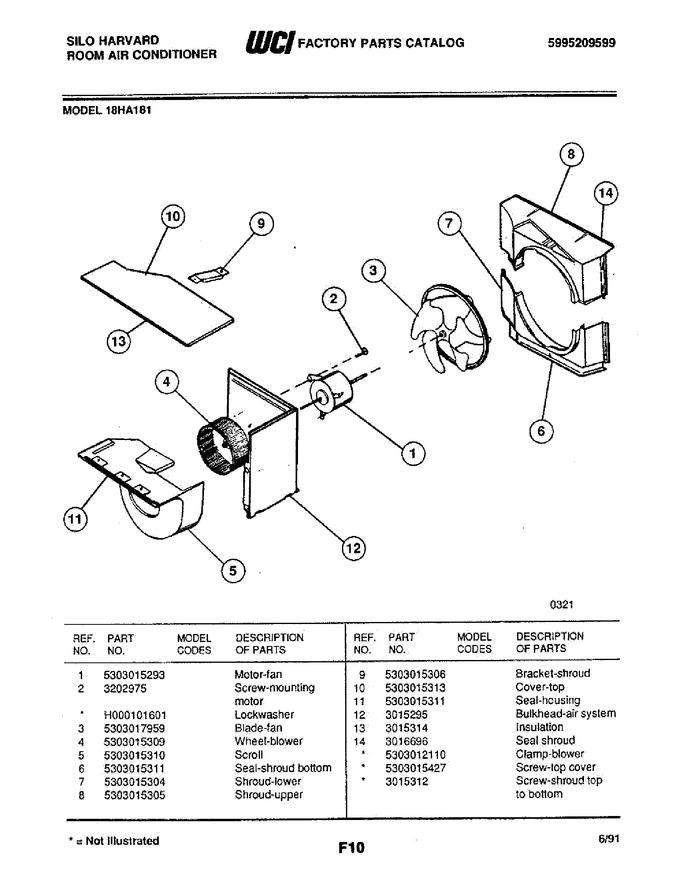

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303015293 | Motor-fan |
|
- | |||||
| 2 | 3202975 | Screw |
|
- | |||||
| 3 | 5303017959 | Blade-fan |
|
- | |||||
| 4 | 5303015309 | Wheel-blower |
|
- | |||||
| 5 | 5303015310 | Scroll |
|
- | |||||
| 6 | 5303015311 | Seal-shroud Bottom |
|
- | |||||
| 7 | 5303015304 | Shroud - Lower |
|
- | |||||
| 8 | 5303015305 | Shroud - Upper |
|
- | |||||
| 9 | 5303015306 | Bracket - Shroud |
|
- | |||||
| 10 | 5303015313 | Cover - Top |
|
- | |||||
| 11 | 5303015311 | Seal - Housing |
|
- | |||||
| 12 | 3015295 | Bulkhead - Air System |
|
- | |||||
| 13 | 3015314 | Insulation |
|
- | |||||
| 14 | 3016696 | Seal Shroud |
|
- | |||||
| 5303012110 | Clamp-blower |
|
$ 8.14 | ||||||
| 3015312 | Screw |
|
- | ||||||
| H000101601 | Lockwasher (non-illustrated) |
|
- | ||||||
| 5303015427 | Screw |
|
- |
