New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 5303208674 Condenser Appelez-nous -
2 5303015457 Evaporator Appelez-nous -
3 5303208665 Tray-evaporator Appelez-nous -
4 3017311 Base Appelez-nous -
5 5300265301 Drier-filter Special Order $ 284.30

6 5303001746 Capillary Tube-cut To 35`` Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

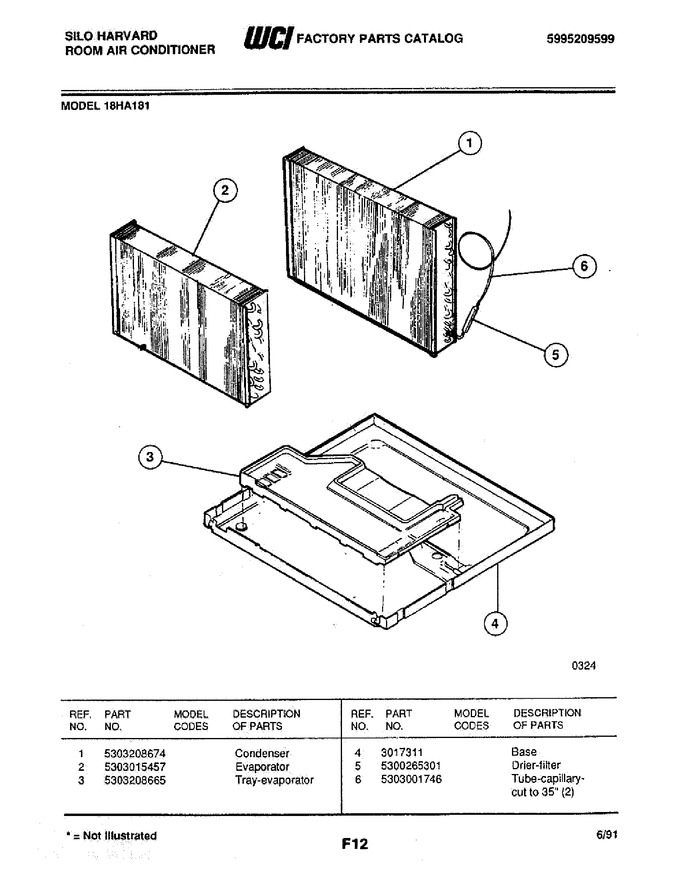

Diagram for 18HA181
