SELECT A DIAGRAM

Diagram for 01 - Outercase
01 - Outercase

Diagram for 02 - Electrical Components
02 - Electrical Components

Diagram for 03 - Control
03 - Control

Diagram for 04 - Blower
04 - Blower

Diagram for 05 - Rear Panel
05 - Rear Panel

Diagram for 06 - Plugs
06 - Plugs

Diagram for 07 - Stirrer
07 - Stirrer

Diagram for 08 - Outer Cavity
08 - Outer Cavity

Diagram for 09 - Base
09 - Base

Diagram for 10 - Heater Box
10 - Heater Box

Diagram for 11 - Wiring Information
11 - Wiring Information

No Diagram Image Available
12 - Supplemental Information

Diagram for 13 - Door
13 - Door


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
001 10908901Q Wrapper-oc (ss) Appelez-nous -
002 10785608 Cover Light (ss) Appelez-nous -
003 NLA Trim-oc (brushed) Appelez-nous -
004 59001230 Hinge Cover (gray) Appelez-nous -
005 12470201 Cover, Vent Appelez-nous -
006 WP3388228 Screw Xxx   (Replaces: M0216703) Special Order $ 6.26

007 WP90767 Screw   (Replaces: M0216716) In-Stock Immediately $ 7.04

008 W11245710 Screw, No.8-18 X 3/8 P Trs Hd Lp   (Replaces: M0210404) In-Stock Immediately $ 12.65

009 M0232002 Screw, T F Appelez-nous -
010 NLA Clip Appelez-nous -
011 M0249619 Screw, T F Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

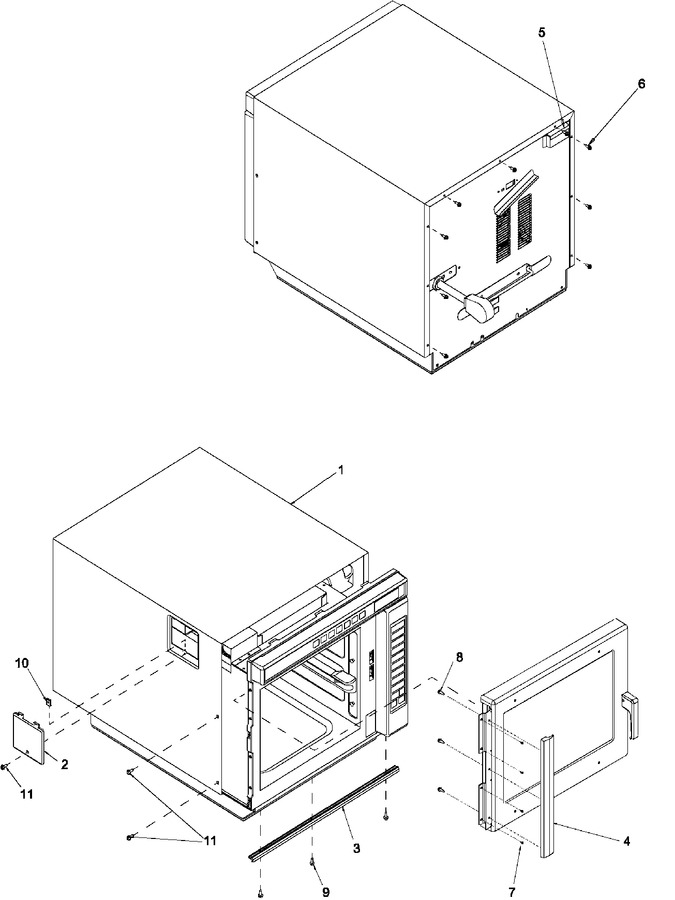

Diagram for ACE208 (BOM P1324410M)
