01 - Outercase


02 - Electrical Components


03 - Control


04 - Blower


05 - Rear Panel


06 - Plugs


07 - Stirrer


08 - Outer Cavity


09 - Base


10 - Heater Box


11 - Wiring Information


12 - Supplemental Information


13 - Door

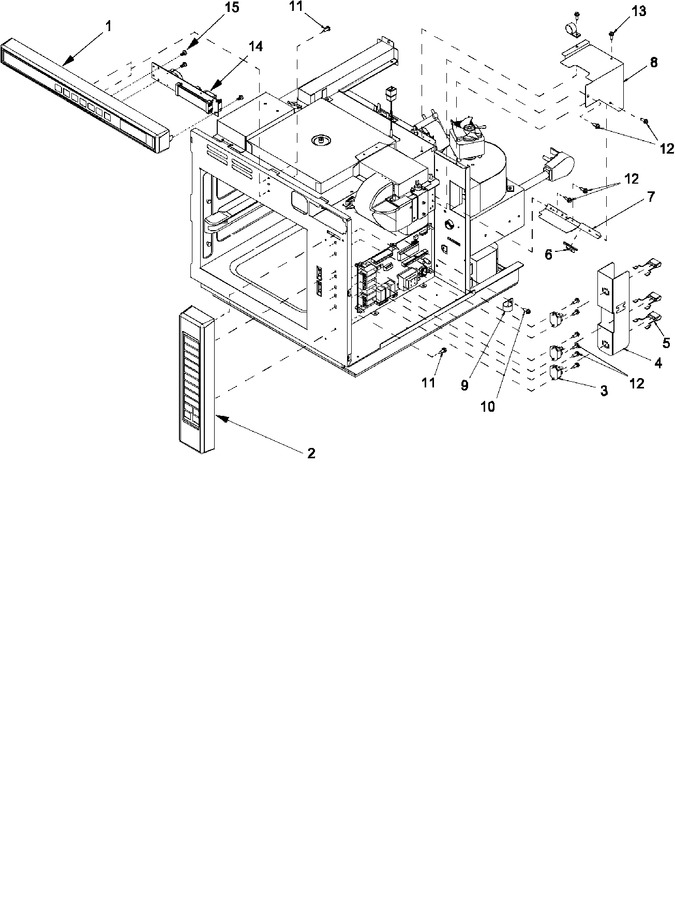

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	R0000280		Assy, Touch Panel-top		Appelez-nous	-
002	59001868		Touch Panel (side)- Ace208d		Appelez-nous	-
002	R0000279		Assy, Touch Panel-side		Appelez-nous	-
003	D7681501		Triac				$ 44.05
004	12210101		Shield, Triac		Appelez-nous	-
005	10172901Q		Snubber Assembly		Appelez-nous	-
006	WPM0104106		Clip   (Replaces: M0104106)				$ 7.00
007	10978601		Duct-blower/mag		Appelez-nous	-
008	10978702		Cover-mag Inlet		Appelez-nous	-
009	M0102305		Clamp, Tube		Appelez-nous	-
010	M0229916		Screw T.c		Appelez-nous	-
011	M0231717		Screw, Tf		Appelez-nous	-
012	WP90767		Screw   (Replaces: M0216716)			Immediately	$ 7.04
013	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.09
014	12502401		Board,display Xxx		Appelez-nous	-
015	M0234114		Screw		Appelez-nous	-
