SELECT A DIAGRAM

01 - Outercase


02 - Rear Panel


03 - Door


04 - Blower


05 - Control


06 - Electrical Components


07 - Plugs


08 - Stirrer


09 - Outer Cavity


10 - Base


11 - Heater Box


12 - Supplemental Information


13 - Wiring Information

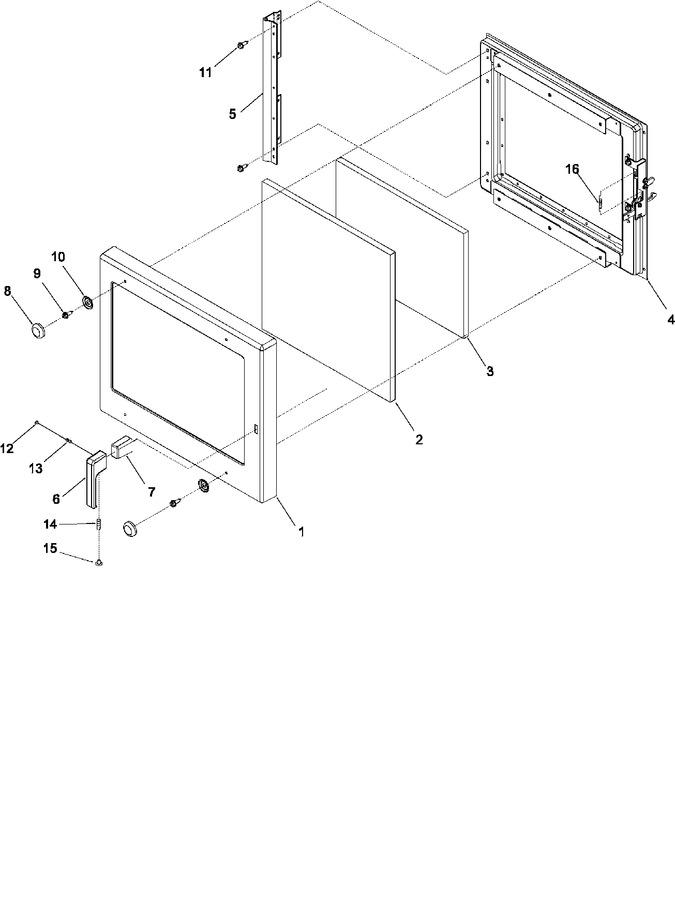

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	59001511		Door-outer		Appelez-nous	-
002	12474902		Insulation, Door-large		Appelez-nous	-
003	12474901		Insulation, Door-small		Appelez-nous	-
004	R0000498		Kit-inner Door W\caps & Choke		Appelez-nous	-
005	59001869		Hinge- Door		Appelez-nous	-
006	12490902		Door Handle		Appelez-nous	-
007	12576901		Insert,handle		Appelez-nous	-
008	M0295501		Cap, Screw		Appelez-nous	-
009	5145-E		No.8 Ab X 1/2`` Crow Foot Hd Scr		Appelez-nous	-
010	M0295502		Washer, Cap Screw		Appelez-nous	-
011	WP12990527		Screw   (Replaces: M0229716)			Immediately	$ 7.15
012	12360703		Plug, Button (wht) (side)		Appelez-nous	-
013	M0208943		Set Screw (side)		Appelez-nous	-
014	M0208342		Screw, Set (bottom)		Appelez-nous	-
015	M0310305		Plug, Button (wht) (bottom)		Appelez-nous	-
016	59001721		Spring-door Latch		Appelez-nous	-
