02 - Backguard And Cooktop Parts


03 - Door Parts


04 - Body Parts


05 - Burner, Manifold And Gas Control


06 - Broiler Drawer Parts

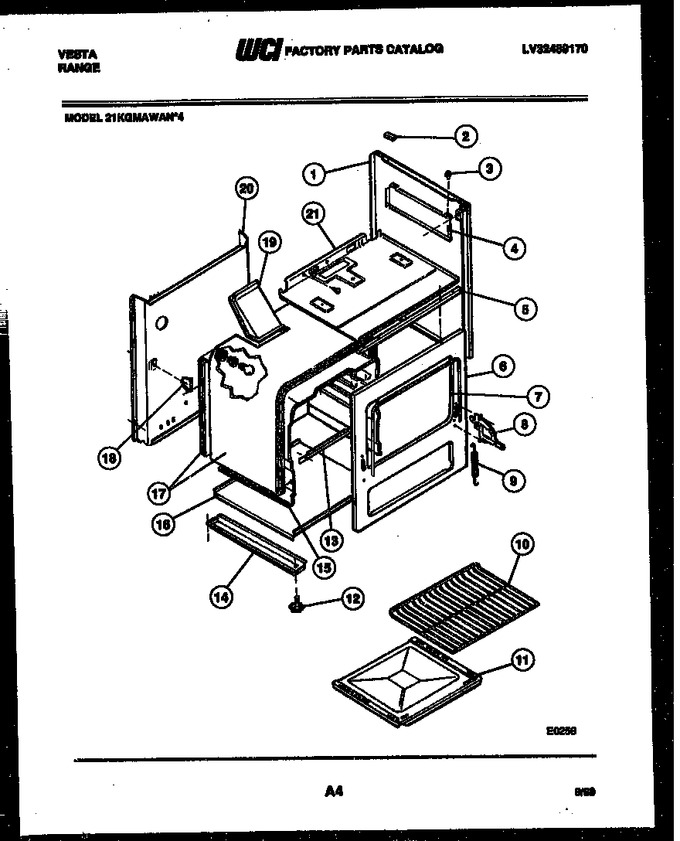

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	3016129		Grommet-top Rear (4)		Appelez-nous	-
3	3051063		Grommet-top Front (2)		Appelez-nous	-
4	3131053		Shield - Heat Rh		Appelez-nous	-
5	3051067		Support-cont Pnl		Appelez-nous	-
6	3051069		Seal-door		Appelez-nous	-
7	3203621		Frame-front		Appelez-nous	-
8	3204670		Hinge - Door Rh		Appelez-nous	-
9	3051079		Spring (2)		Appelez-nous	-
10	3016158		Rack (2)		Appelez-nous	-
11	3018697		Liner-oven Bottom		Appelez-nous	-
12	3051080		Screw - Levelling (4)		Appelez-nous	-
13	3131038		Support - Oven Bttm		Appelez-nous	-
14	A98373000		Rail - Base (2)		Appelez-nous	-
15	3018284		Liner - Side Rh		Appelez-nous	-
16	3131042		Bottom-oven		Appelez-nous	-
17	3131043		Insulation-wrap		Appelez-nous	-
18	3051096		Support-oven Rear (2)		Appelez-nous	-
19	3017173		Vent - Flue		Appelez-nous	-
20	3131045		Back-main		Appelez-nous	-
21	3017573		Box-burner		Appelez-nous	-
*30001	3934059		Anti - Tip Bracket		Appelez-nous	-
*30001	3009582		Clip - B/s		Appelez-nous	-
15A	3018285		Liner - Side Lh		Appelez-nous	-
15B	3018700		Liner-top		Appelez-nous	-
15C	3018699		Liner-back		Appelez-nous	-
17A	3131044		Insulation-back		Appelez-nous	-
4A	3131054		Shield - Heat Lh		Appelez-nous	-
8A	3204672		Hinge - Door Lh		Appelez-nous	-
