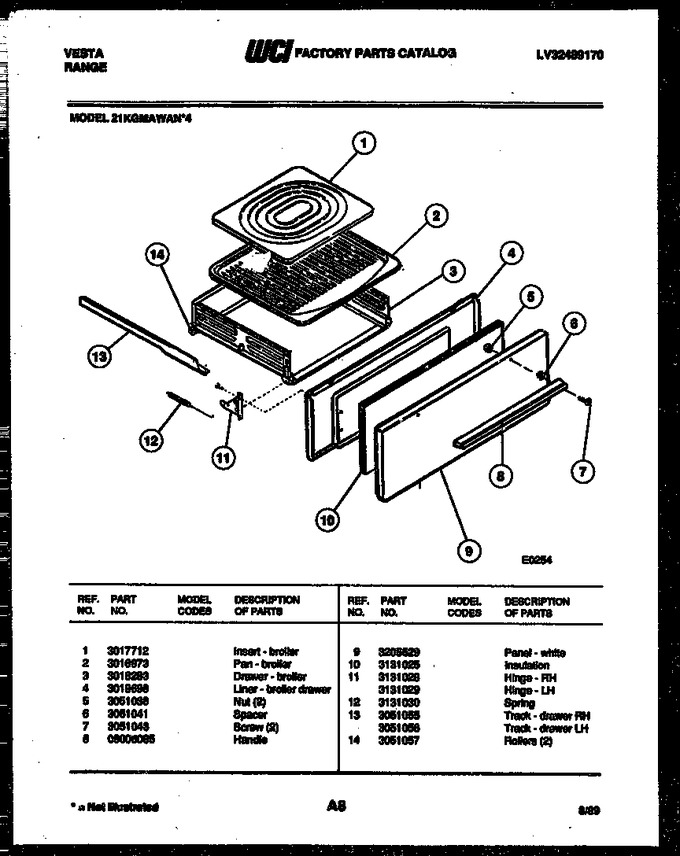

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3017712 | Insert-broiler |
|
- | |||||
| 2 | 3016973 | Pan-broiler |
|
- | |||||
| 3 | 3018283 | Drawer Broiler |
|
- | |||||
| 4 | 3018698 | Liner-broiler Drawer |
|
- | |||||
| 5 | 3051038 | Nut (2) |
|
- | |||||
| 6 | 3051041 | Spacer |
|
- | |||||
| 7 | 3051043 | Screw (2) |
|
- | |||||
| 8 | 08008085 | Handle |
|
- | |||||
| 10 | 3131025 | Insulation |
|
- | |||||
| 11 | 3131028 | Hinge - Rh |
|
- | |||||
| 12 | 3131030 | Spring |
|
- | |||||
| 13 | 3051055 | Track Drawer Rh |
|
- | |||||
| 14 | 3051057 | Rollers (2) |
|
- | |||||
| 11A | 3131029 | Hinge - Lh |
|
- | |||||
| 13A | 3051056 | Track Drawer Lh |
|
- |
