Diagram # Part Number Description Series Availability Ships Price Add to Cart
11 10851701Q Assy,basepan Appelez-nous -
12 WP67002552 Bulb, Light(240)   (Replaces: A0282802) In-Stock Immediately $ 10.58

21 10788602 Transformer-hv Appelez-nous -
22 12027401 Receptacle-lamp Appelez-nous -
31 10489402 Magnetron-t Appelez-nous -
32 12630501 Cover,lamp Appelez-nous -
41 10999501 Brkt-tco Mtg Appelez-nous -
42 B5684102 Thermal Protector Appelez-nous -
51 M0229916 Screw T.c Appelez-nous -
52 B5684119 Cutout-thermal Appelez-nous -
61 WP90767 Screw   (Replaces: M0216716) In-Stock Immediately $ 7.04

62 M0232012 Screw Appelez-nous -
71 WP489128 Screw   (Replaces: M0220417) Special Order $ 9.79

72 67006425 Screw, Sm   (Replaces: M0238616) In-Stock Immediately $ 6.26

82 WP90767 Screw   (Replaces: M0216716) In-Stock Immediately $ 7.04

92 WP489349 Screw   (Replaces: M0216515) In-Stock Immediately $ 7.09


    View Diagram in Separate Window     Print Icon   Print Part List

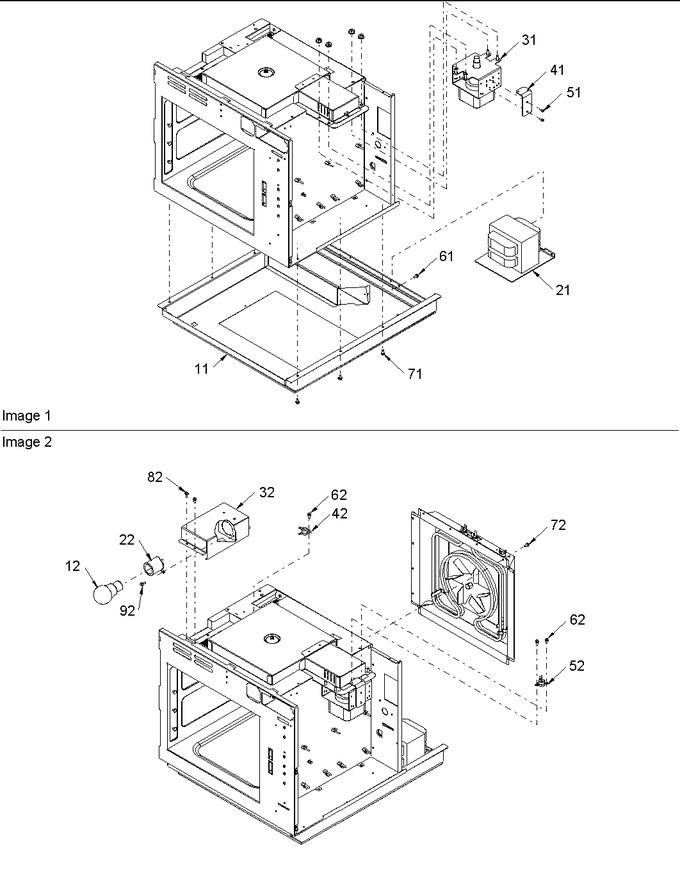

Diagram for ACE230 (BOM: P1324403M)
