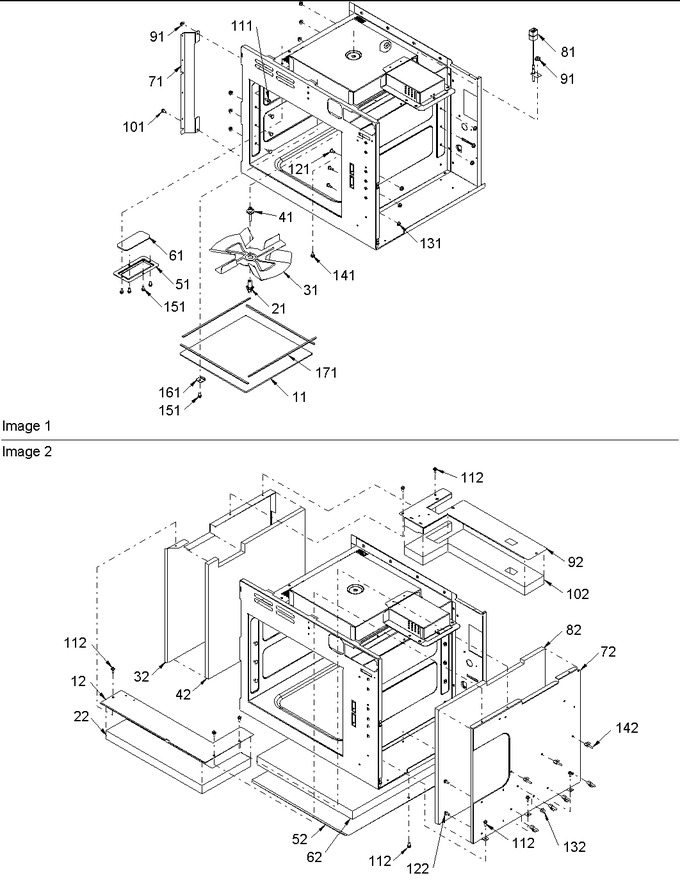

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	R0150115		Assy, Stirrer Cover				$ 123.32
12	10978002		Retainer-top Front Insul		Appelez-nous	-
21	R0150114		Insert-stirrer		Appelez-nous	-
22	12000702		Insul- Top Front Retainer		Appelez-nous	-
31	10825904Q		Blade, Stirrer		Appelez-nous	-
32	10977301		Retainer-side Insul Lt		Appelez-nous	-
41	12004401		Shaft, Stirrer		Appelez-nous	-
42	12000501		Insul- Side Retainer Lt		Appelez-nous	-
51	10978201		Retainer, Oven Light Glass		Appelez-nous	-
52	10977501		Retainer-bottom Insul		Appelez-nous	-
61	12047501		Glass-oven Light		Appelez-nous	-
62	12000703		Insul-bottom Retainer		Appelez-nous	-
71	12189004		Brkt, Hinge Supp		Appelez-nous	-
72	10977102		Retainer-side Insul Rt		Appelez-nous	-
81	12000201		Sensor-temp		Appelez-nous	-
82	12000401		Insul- Side Retainer Rt		Appelez-nous	-
91	M0282005		Nut K				$ 7.07
92	10977401		Retainer-top Back Insul		Appelez-nous	-
101	M0231717		Screw, Tf		Appelez-nous	-
102	12000701		Insul- Top Back Retainer		Appelez-nous	-
111	M0202557		Screw-mach		Appelez-nous	-
112	WP90767		Screw   (Replaces: M0216716)			Immediately	$ 7.04
121	12030101		Bolt-shldr		Appelez-nous	-
122	5043-W		No.6 F X 1/4`` Screw (25)		Appelez-nous	-
131	WP488130		Nut   (Replaces: M0282007)				$ 6.27
132	M0590602		Support P-c Bd A		Appelez-nous	-
141	M0232002		Screw, T F		Appelez-nous	-
142	M0585507		Support		Appelez-nous	-
151	M0213802		Screw		Appelez-nous	-
161	12188901		Retainer-tray		Appelez-nous	-
171	12019002		Gasket				$ 7.61
NI	12487402		Rack, Oven		Appelez-nous	-
