Diagram # Part Number Description Series Availability Ships Price Add to Cart
001 12002804 Access Pan Weld (blk) Appelez-nous -
002 WPM0104106 Clip   (Replaces: M0104106) Special Order $ 7.00

003 A3030301 Gasket (inch) Appelez-nous -
004 WP90767 Screw   (Replaces: M0216716) In-Stock Immediately $ 7.04

005 WP3388228 Screw Xxx   (Replaces: M0216703) Special Order $ 6.26

006 WP90767 Screw   (Replaces: M0216529) In-Stock Immediately $ 7.04

007 M0287001 Nut-speed Appelez-nous -
008 10098907 Power Cord Appelez-nous -
009 12492202 Relay Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

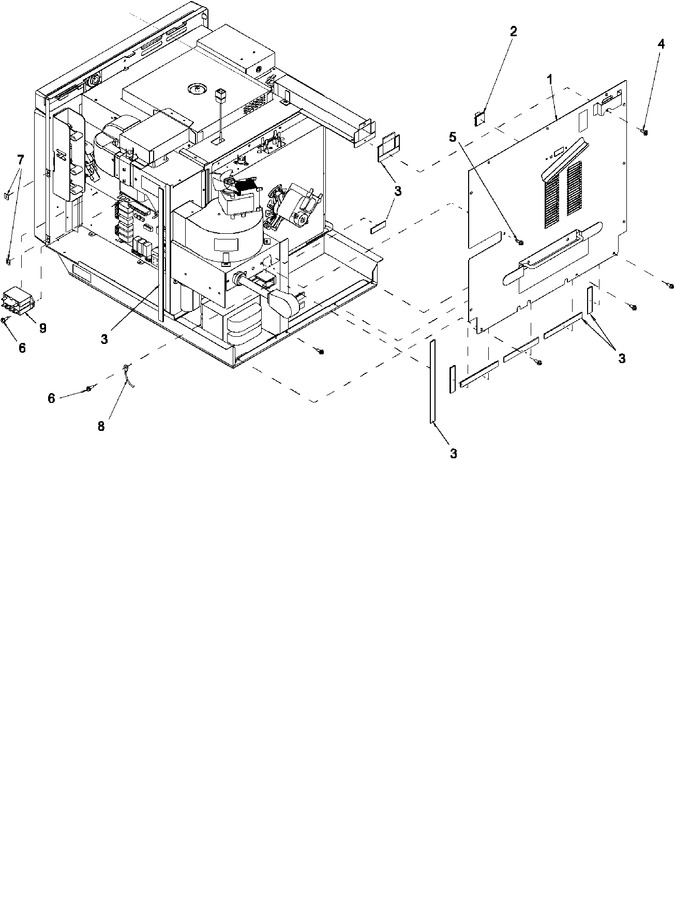

Diagram for ACE2302 (BOM P1331305M)
