Diagram # Part Number Description Series Availability Ships Price Add to Cart
001 10098907 Power Cord Appelez-nous -
002 B5706704 Fan Blade Special Order $ 8.23

003 M0370003 Strain Relief Appelez-nous -
004 10773306 Motor- Blower Appelez-nous -
004 10773307 Motor- Blower Appelez-nous -
005 12000810 Weld,blower Brkt Appelez-nous -
006 10977801 Transition-blower Appelez-nous -
007 10091101 Fuse Holder Appelez-nous -
008 10797203 Scroll Weld Appelez-nous -
009 M0805205 Fuse- 30a Special Order $ 10.08

010 C3670809 Wheel, Blower Special Order $ 33.54

011 WP90767 Screw   (Replaces: M0216716) In-Stock Immediately $ 7.04

012 WP90767 Screw   (Replaces: M0216716) In-Stock Immediately $ 7.04

013 WP489349 Screw   (Replaces: M0216515) In-Stock Immediately $ 7.09

014 M0253916 Screw Appelez-nous -
015 M0231717 Screw, Tf Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

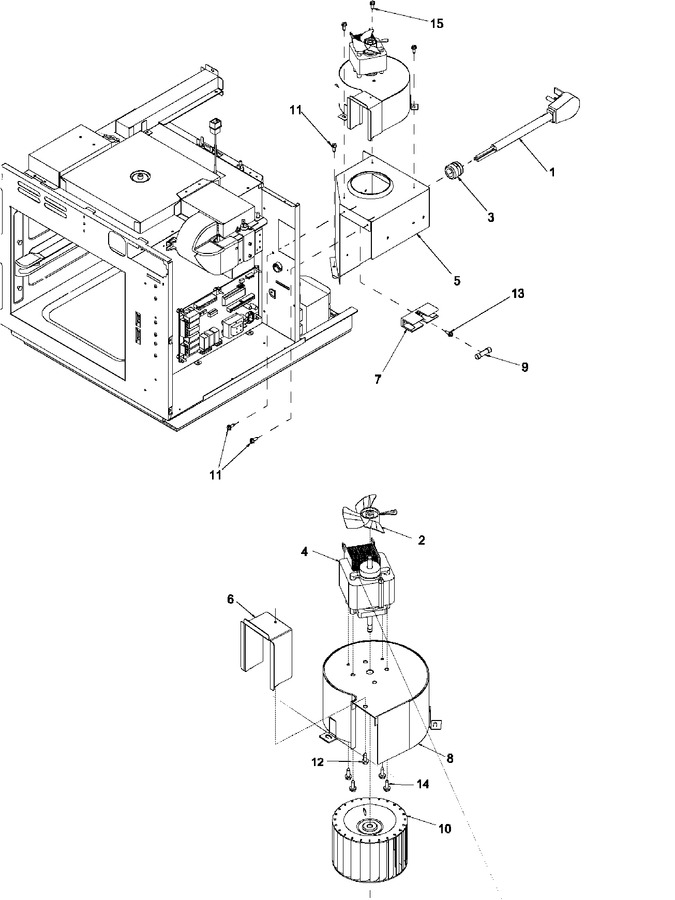

Diagram for ACE2302 (BOM P1331305M)
