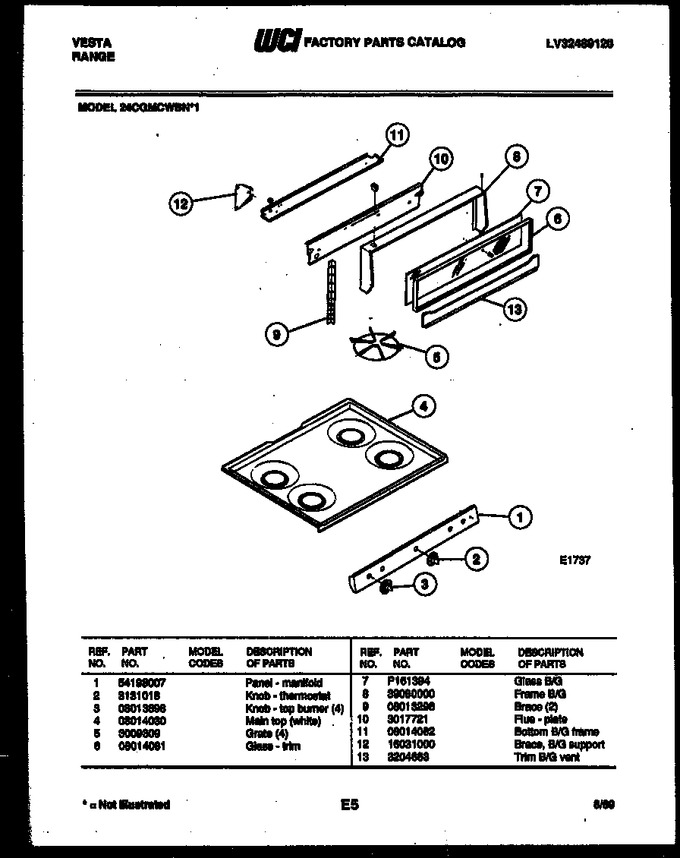

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 54198007 | Panel - Manifold |
|
- | |||||
| 2 | 3131018 | Knob-thermostat |
|
- | |||||
| 3 | 08013898 | Knob - Top Burner (4) |
|
- | |||||
| 4 | 08014030 | Main Top (white) |
|
- | |||||
| 5 | 3009309 | Grate (4) |
|
- | |||||
| 6 | 08014081 | Glass - Trim |
|
- | |||||
| 7 | P161394 | Glass B/g |
|
- | |||||
| 8 | 39080000 | Frame B/g |
|
- | |||||
| 9 | 08013296 | Brace (2) |
|
- | |||||
| 10 | 3017721 | Flue - Plate |
|
- | |||||
| 11 | 08014082 | Bottom B/g Frame |
|
- | |||||
| 12 | 16031000 | Brace, B/g Support |
|
- | |||||
| 13 | 3204663 | Trim B/g Vent |
|
- |
