02 - Backguard And Cooktop Parts


03 - Door Parts


04 - Burner Parts


05 - Body Parts


06 - Broiler Drawer Parts

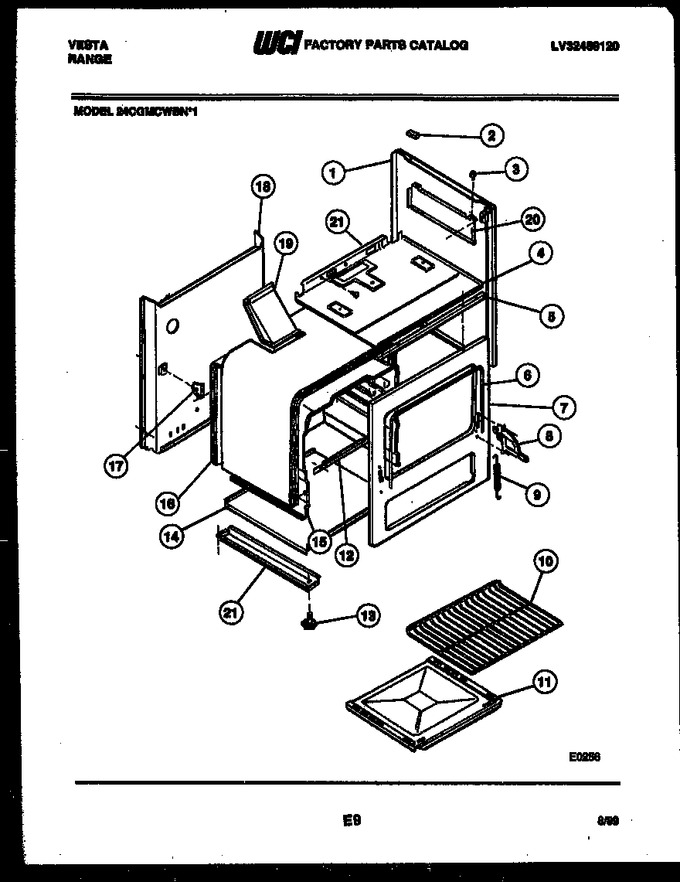

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3016129		Grommet Main Top		Appelez-nous	-
2	3051063		Grommet		Appelez-nous	-
3	3051061		Side Body White (2)		Appelez-nous	-
4	3202742		Bottom Burner Box		Appelez-nous	-
5	3016950		Support-cont Panel		Appelez-nous	-
6	3203612		Front Frame - Bronze		Appelez-nous	-
7	08013916		Seal - Oven Door		Appelez-nous	-
8	3204670		Hinge Assy Rh		Appelez-nous	-
9	3051079		Spring Oven Door (2)		Appelez-nous	-
10	3016128		Rack-oven (2)		Appelez-nous	-
11	3018815		Liner - Oven Bottom		Appelez-nous	-
12	3131038		Support-oven Bottom		Appelez-nous	-
13	3051080		Leg Leveler (4)		Appelez-nous	-
14	3017448		Bottom - Main		Appelez-nous	-
15	3018285		Liner Lh		Appelez-nous	-
16	3202740		Insulation-wrap		Appelez-nous	-
17	3051096		Support-oven Rear (2)		Appelez-nous	-
18	3017449		Main Back		Appelez-nous	-
19	3017173		Vent Box		Appelez-nous	-
20	3131053		Shield-burner Box Rh		Appelez-nous	-
21	08068047		Base Rail		Appelez-nous	-
*29719	3131791		Clip - Backsplash (2)				$ 19.01
*29719	3934059		Anti - Tip Bracket		Appelez-nous	-
15A	3018284		Liner Rh		Appelez-nous	-
15B	3018818		Liner-top		Appelez-nous	-
15C	3018817		Liner-back		Appelez-nous	-
16A	3202741		Insulation-back & Top		Appelez-nous	-
20A	3131054		Shield-burner Box Lh		Appelez-nous	-
8A	3204672		Hinge Assy Lh		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
