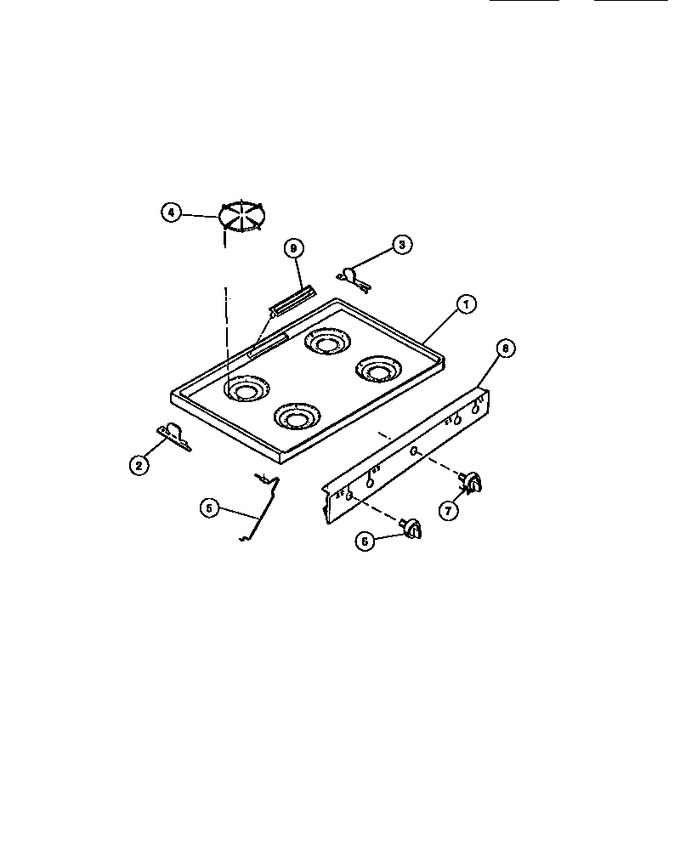

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3206215 | Main Top, Almond |
|
- | |||||
| 2 | 08067746 | Bracket Hinge, Left Hand |
|
- | |||||
| 3 | 08067747 | Bracket Hinge, Right Hand |
|
- | |||||
| 4 | 5303012700 | Grate (4) |
|
- | |||||
| 5 | 5303271609 | Rod-maintop Support |
|
- | |||||
| 6 | 5303212492 | Knob-top Valve |
|
- | |||||
| 7 | 5303281927 | Knob-thermostat |
|
- | |||||
| 8 | 530321495 | Panel-manifold |
|
- | |||||
| 9 | 3131190 | Cover-vent |
|
- |
