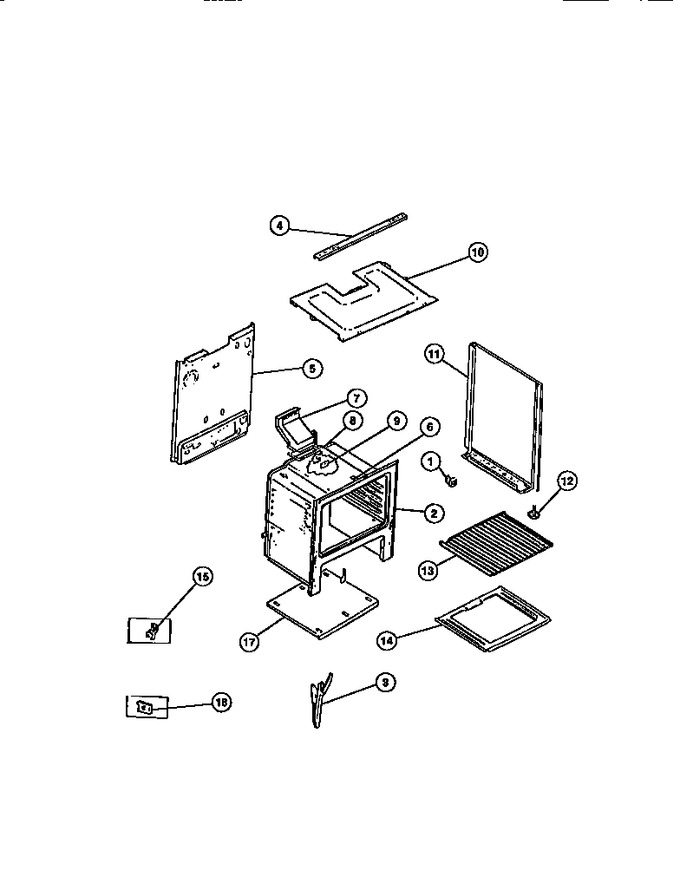

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3014099		Spacer-bodyside, (8)				$ 3.62
3	5303274815		Channel-door Hinge		Appelez-nous	-
4	3203394		Channel-burner Support		Appelez-nous	-
5	3203082		Back-main		Appelez-nous	-
6	5303015372		Cover, Front Main		Appelez-nous	-
7	3131909		Flue		Appelez-nous	-
8	08067965		Gasket-flue		Appelez-nous	-
9	3018607		Cover Plate				$ 10.50
10	3204962		Burner Box		Appelez-nous	-
11	5303269543		Panel-bodyside Rh (almond)		Appelez-nous	-
11	5303269545		Panel Bodyside Lh (almond)		Appelez-nous	-
12	5303203397		Screw, Leveler (4)				$ 14.49
13	5303131973		Rack, Oven		Appelez-nous	-
14	5303212540		Bottom, Oven		Appelez-nous	-
15	5303280586		Clip-thermostat Bulb		Appelez-nous	-
17	5303270160		Base-broil		Appelez-nous	-
18	3203010		Fastener   (Replaces: 5303012323)				$ 14.89
*30407	3051218		Plate,oven Light		Appelez-nous	-
*30408	3934056		Anti-tip Bracket		Appelez-nous	-
*30409	3202799		Shield, Flue		Appelez-nous	-
*30410	3203541		Insulation-back		Appelez-nous	-
*30411	3017142		Insulation-wrap				$ 193.50
*30412	3131191		Cover, Flue		Appelez-nous	-
*30413	3014226		Support-oven Bottom		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
