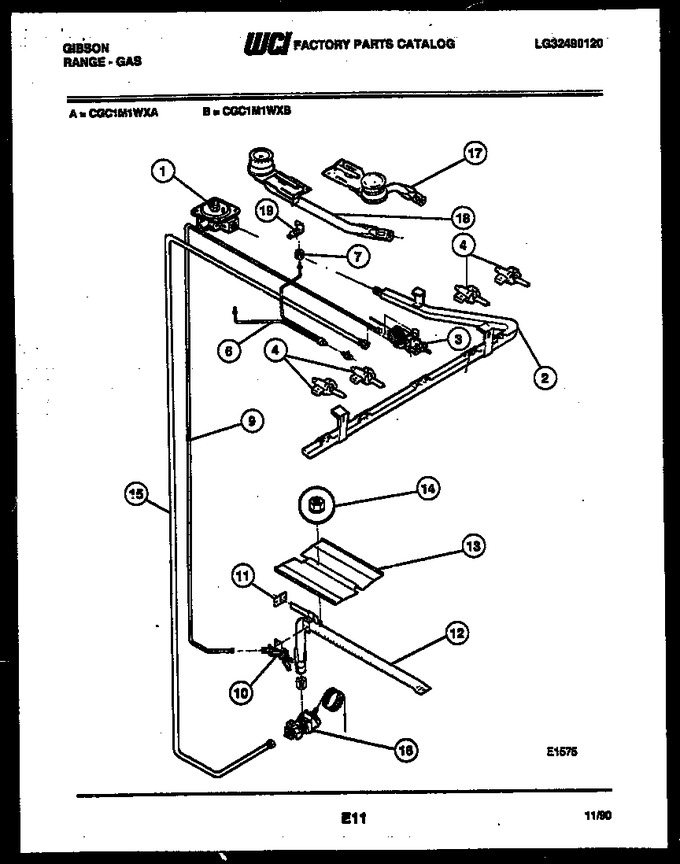

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Backguard
03 - Cooktop Parts
04 - Door Parts
05 - Broiler Drawer Parts
06 - Burner Parts
07 - Body Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303016997 | Control-regulator |
|
- | |||||
| 2 | 3204972 | Manifold - Pipe |
|
- | |||||
| 3 | 3204974 | Thermostat |
|
- | |||||
| 4 | 3202796 | Valve, Top 2 Pos (4) |
|
- | |||||
| 6 | 5303211133 | Tube-top Pilot-dual |
|
$ 88.20 | |||||
| 7 | 5303211191 | Cap-top Pilot |
|
$ 35.75 | |||||
| 9 | 3203398 | Tube - Alum Thermo |
|
- | |||||
| 10 | 3203395 | Pilot - Oven |
|
- | |||||
| 11 | 3018603 | Brkt-oven Burner |
|
- | |||||
| 12 | 3203391 | Burner - Oven |
|
- | |||||
| 13 | 3203265 | Baffle,oven Burner |
|
- | |||||
| 14 | 154079601 | Nut-baffle (Replaces: 5303013272) |
|
$ 0.41 | |||||
| 15 | 5303211134 | Tube - Alum Thermo/safety Valve W/ Fit. |
|
- | |||||
| 16 | 3204583 | Valve - Safety |
|
- | |||||
| 17 | 3204958 | Burner, Top Front (2) |
|
- | |||||
| 18 | 3204960 | Burner, Top Rear (2) |
|
- | |||||
| 19 | 3202798 | Shield-pilot (2) |
|
$ 55.18 | |||||
| 4A | 3204499 | Screw - Valves (10) (non-illustrated) |
|
- |
