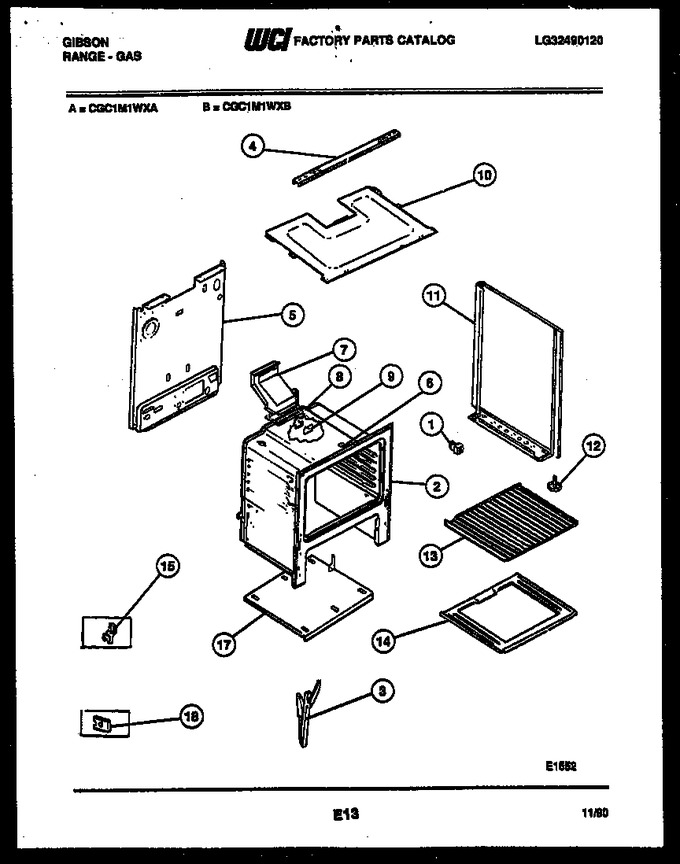

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3014099		Spacer-bodyside, (8)				$ 3.62
3	5303131569		Channel, Door Hinge		Appelez-nous	-
4	3203394		Channel-burner Supt.		Appelez-nous	-
5	3203082		Back-main		Appelez-nous	-
6	5303015372		Cover, Front Main		Appelez-nous	-
7	3131909		Flue		Appelez-nous	-
8	08067965		Gasket-flue		Appelez-nous	-
9	3018607		Cover Plate				$ 10.50
10	3204962		Burner Box		Appelez-nous	-
11	3205623		Pnl, B/s Rh (white)		Appelez-nous	-
11	3205624		Pnl-b/s Rh-almond		Appelez-nous	-
12	5303203397		Screw, Leveler (4)				$ 14.49
13	5303131973		Rack, Oven		Appelez-nous	-
14	5303212540		Bottom, Oven		Appelez-nous	-
15	3011805		Clip - Thermo Bulb		Appelez-nous	-
17	3131180		Base, Broil		Appelez-nous	-
18	3203010		Fastener   (Replaces: 5303012323)				$ 14.89
*27067	3934056		Anti-tip Bracket		Appelez-nous	-
*27067	3051218		Plate,oven Light		Appelez-nous	-
*27067	3202799		Shield, Flue		Appelez-nous	-
11A	3205621		Pnl-b/s Lh-almond		Appelez-nous	-
11A	3205620		Pnl, B/s Lh (white)		Appelez-nous	-
14A	3203541		Insulation, Back (non-illustrated)		Appelez-nous	-
14B	3017142		Insulation, Wrap (non-illustrated)				$ 193.50
15A	3131191		Cover, Flue (non-illustrated)		Appelez-nous	-
15B	3014226		Support-oven Bottom, (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
