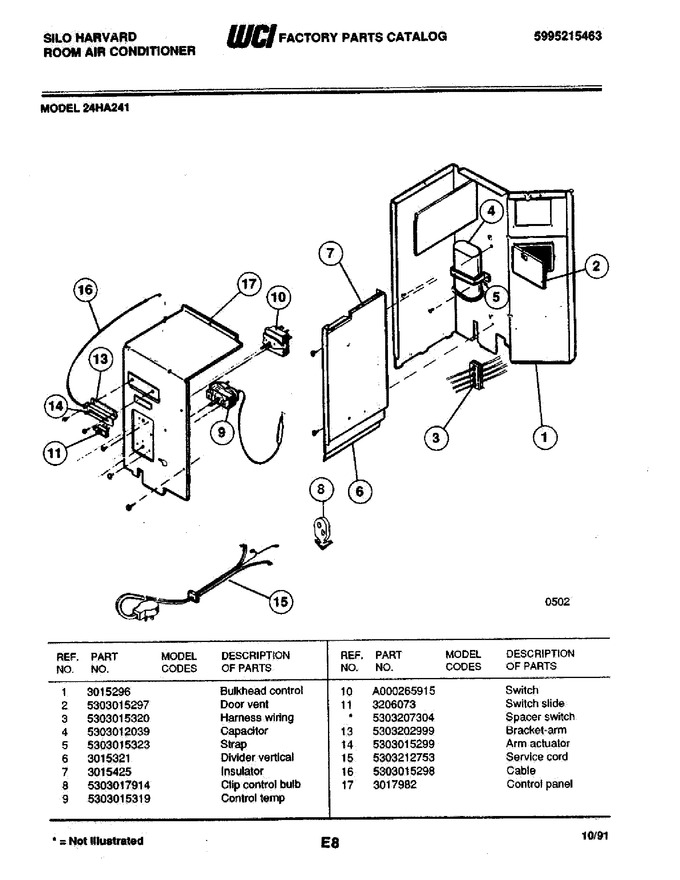

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3015296 | Bulkhead - Control |
|
- | |||||
| 2 | 5303015297 | Door-vent |
|
- | |||||
| 3 | 5303015320 | Wiring Harness |
|
- | |||||
| 4 | 5303012039 | Capacitor |
|
- | |||||
| 5 | 5303015323 | Strap-capacitor |
|
- | |||||
| 6 | 3015321 | Divider - Vertical |
|
- | |||||
| 7 | 3015425 | Insulation |
|
- | |||||
| 8 | 5303017914 | Clip - Control Bulb |
|
- | |||||
| 9 | 5303015319 | Control Temp |
|
- | |||||
| 10 | A000265915 | Switch |
|
- | |||||
| 11 | 3206073 | Switch |
|
- | |||||
| 13 | 5303202999 | Bracket-arm |
|
- | |||||
| 14 | 5303015299 | Arm - Actuator |
|
- | |||||
| 15 | 5303212753 | Cord-service |
|
- | |||||
| 16 | 5303015298 | Cable |
|
- | |||||
| 17 | 3017982 | Panel |
|
- | |||||
| 5303207304 | Spacer - Switch |
|
- |
